RN2483A-I/RM103 footprint, schematic symbol and 3D model by Microchip

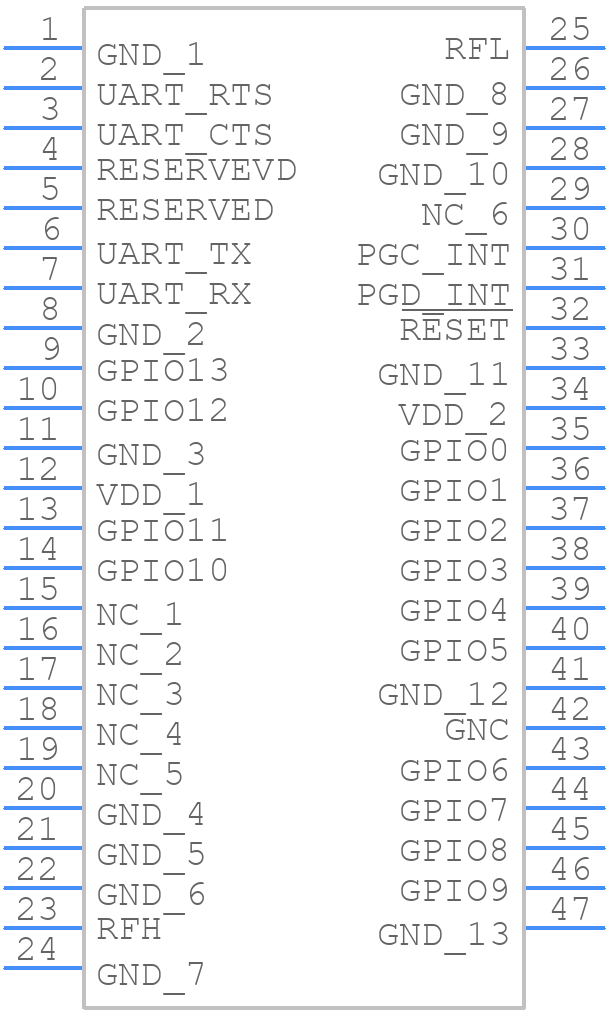

Symbol

click to zoom

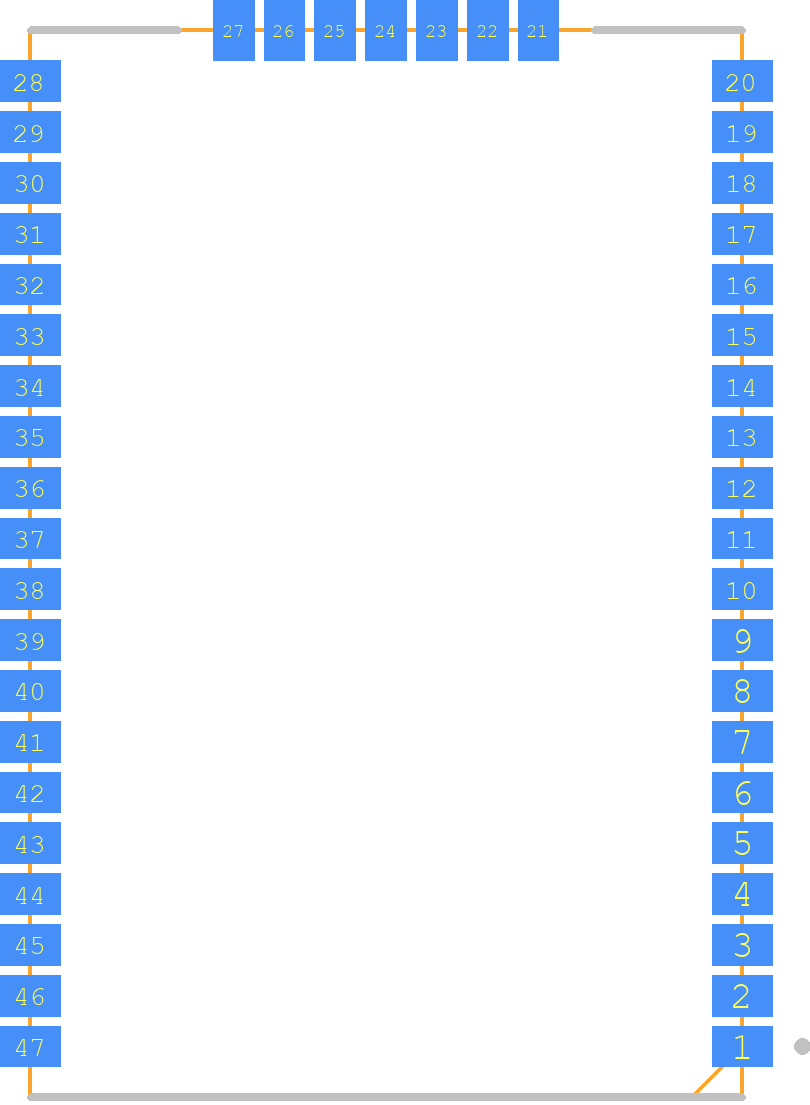

PCB Footprints

RN2483A-I/RM103 - Microchip PCB footprint - Other - Other - RM 2483

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN2483A-I/RM103
Part Number RN2483A-I/RM103
Manufacturer Microchip
Pin Count 47
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - RM 2483
Released Date Jul 21, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RN2483A-I/RM103 Details

Manufacturer Part Number:
RN2483A-I/RM103
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
MODULE-47
Pin Count:
47
Manufacturer Package Code:
MODULE-47
Country Of Origin:
Thailand
ECCN Code:
5A992.C
HTS Code:
8529.90.22.00
Factory Lead Time:
12 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
0
Data Rate:
100000 Mbps
JESD-30 Code:
R-XXMA-N47
Length:
26.67 mm
Number of Functions:
1
Number of Terminals:
47
Number of Transceivers:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Screening Level:
TS 16949
Seated Height-Max:
3.34 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
ETHERNET TRANSCEIVER
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
1.27 mm
Terminal Position:
UNSPECIFIED
Width:
17.78 mm

RN2483A-I/RM103 Frequently Asked Questions (FAQs)

The recommended antenna design for the RN2483A-I/RM103 is a quarter-wave monopole antenna with a length of around 86 mm. The antenna should be matched to 50 ohms and have a return loss of better than 10 dB.
To configure the module for low power consumption, set the sleep mode to 'deep sleep' and adjust the wake-up interval according to your application's requirements. Additionally, disable unnecessary peripherals and use the lowest possible transmission power.
The maximum transmission distance of the RN2483A-I/RM103 module depends on various factors such as the environment, antenna design, and transmission power. However, in ideal conditions, the module can achieve a transmission distance of up to 10 km.
To troubleshoot connectivity issues with the module, check the antenna connection, ensure that the module is properly configured, and verify that the transmission power is set correctly. Also, check the signal strength and quality using the AT+CSQ command.
Yes, the RN2483A-I/RM103 module can be used with a non-Microchip baseboard, but it may require additional design and testing to ensure compatibility and optimal performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

RN2483A-I/RM103 Overview

Use the download button to access the RN2483A-I/RM103 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RN248, or try a keyword search, such as Network Interfaces
