RN2483A-I/RM105 footprint, schematic symbol and 3D model by Microchip

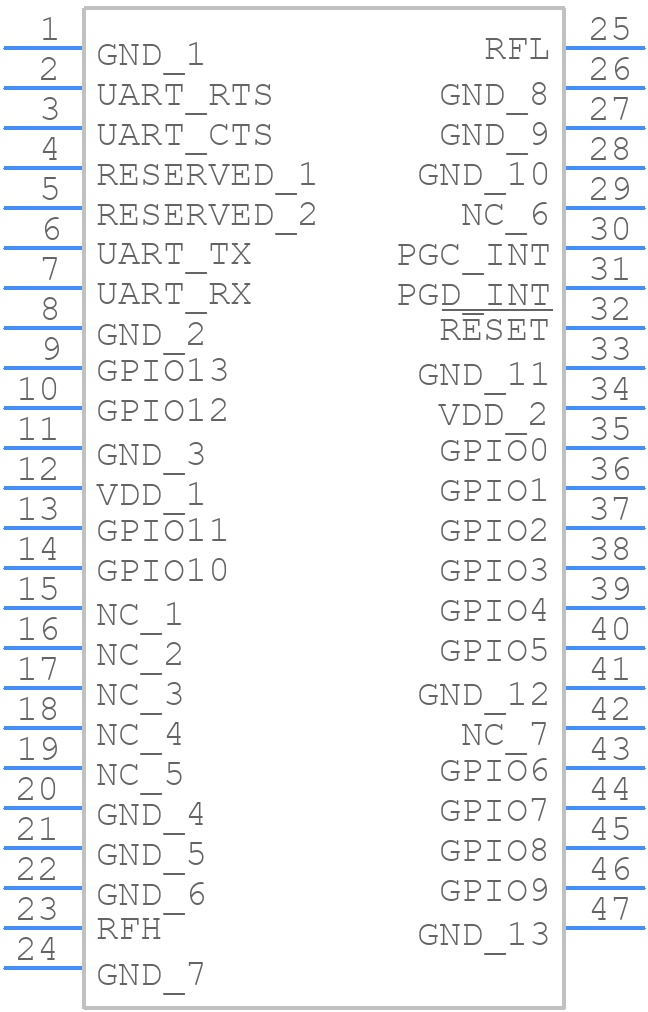

Symbol

click to zoom

PCB Footprints

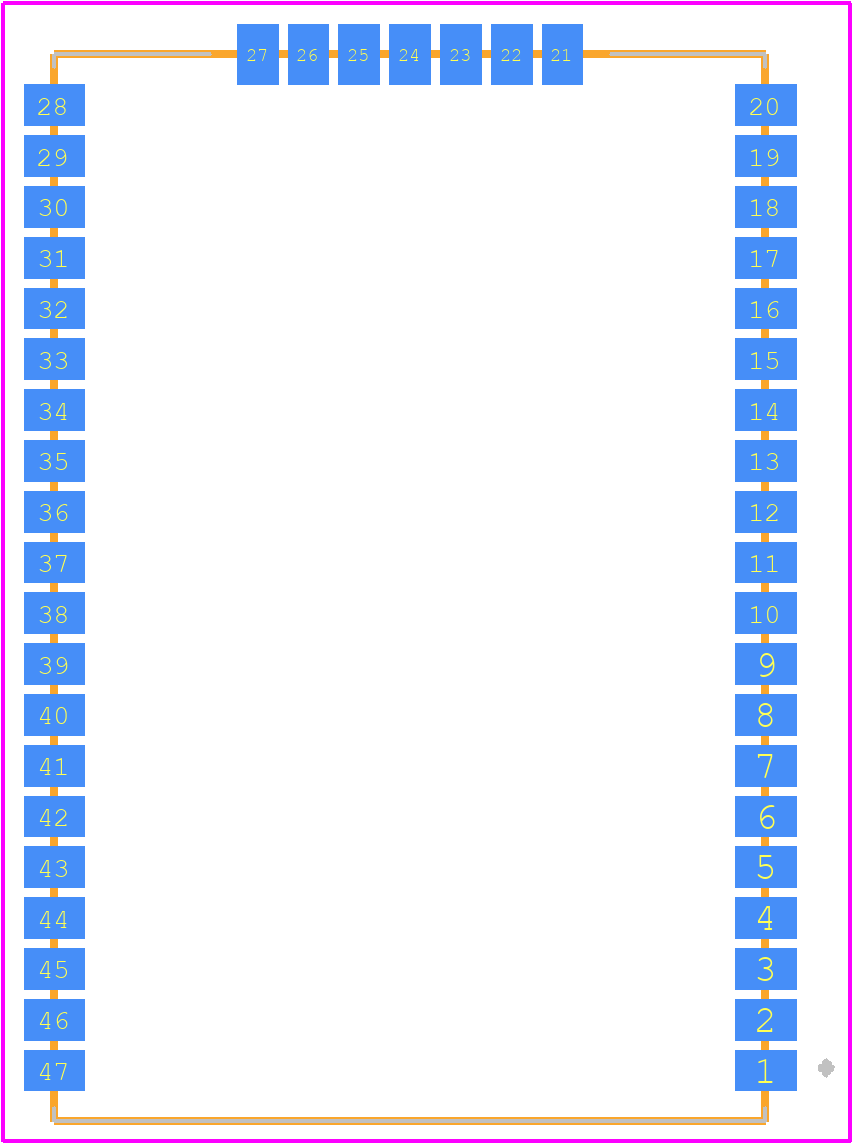

RN2483A-I/RM105 - Microchip PCB footprint - Other - Other - RN2483A-I/RM104-3

click to zoom

3D Models

RN2483A-I/RM105 - Microchip - 3D model - Other - RN2483A-I/RM104-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN2483A-I/RM105
Part Number RN2483A-I/RM105
Manufacturer Microchip
Pin Count 47
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RN2483A-I/RM104-3
Released Date Jun 11, 2019
Last Modified Date Dec 11, 2023 4:33 AM UTC
Pinout / Pin List Click Here (Member Only)

RN2483A-I/RM105 Details

Manufacturer Part Number:
RN2483A-I/RM105
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MODULE-47
Pin Count:
47
Manufacturer Package Code:
MODULE-47
Country Of Origin:
Thailand
ECCN Code:
5A992.C
HTS Code:
8529.90.22.00
Factory Lead Time:
12 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
18
JESD-30 Code:
R-XXMA-N47
Length:
26.67 mm
Number of Functions:
1
Number of Terminals:
47
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
3.367 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
ETHERNET TRANSCEIVER
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
1.27 mm
Terminal Position:
UNSPECIFIED
Width:
17.78 mm

RN2483A-I/RM105 Frequently Asked Questions (FAQs)

The recommended antenna design for optimal performance is a quarter-wave monopole antenna with a length of around 86 mm. The antenna should be placed at least 10 mm away from any metal surfaces to minimize detuning effects.
To configure the module for low-power operation, set the PWRMODE pin to LOW and use the AT+CPSMS command to set the power mode to 'minimum'. Additionally, use the AT+CCLK command to set the clock speed to the lowest frequency required for your application.
The maximum transmission power of the RN2483A-I/RM105 module is +14 dBm (25 mW) for LoRaWAN and +20 dBm (100 mW) for FSK modulation.
To implement secure communication with the module, use the AT+KEY command to set the encryption key and the AT+Cipher command to enable encryption. Additionally, use secure protocols such as TLS or DTLS for data transmission.
The maximum data rate supported by the RN2483A-I/RM105 module is 50 kbps for LoRaWAN and 115.2 kbps for FSK modulation.

Trust Checks

Expert Contribution

System Verified

Community Approved

RN2483A-I/RM105 Overview

Use the download button to access the RN2483A-I/RM105 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RN248, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
