RN2903A-I/RM103 - Microchip

Description: MICROCHIP - RN2903A-I/RM103 - RF TRANSCEIVER MODULE, 300KBPS, 928MHZ

Download RN2903A-I/RM103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

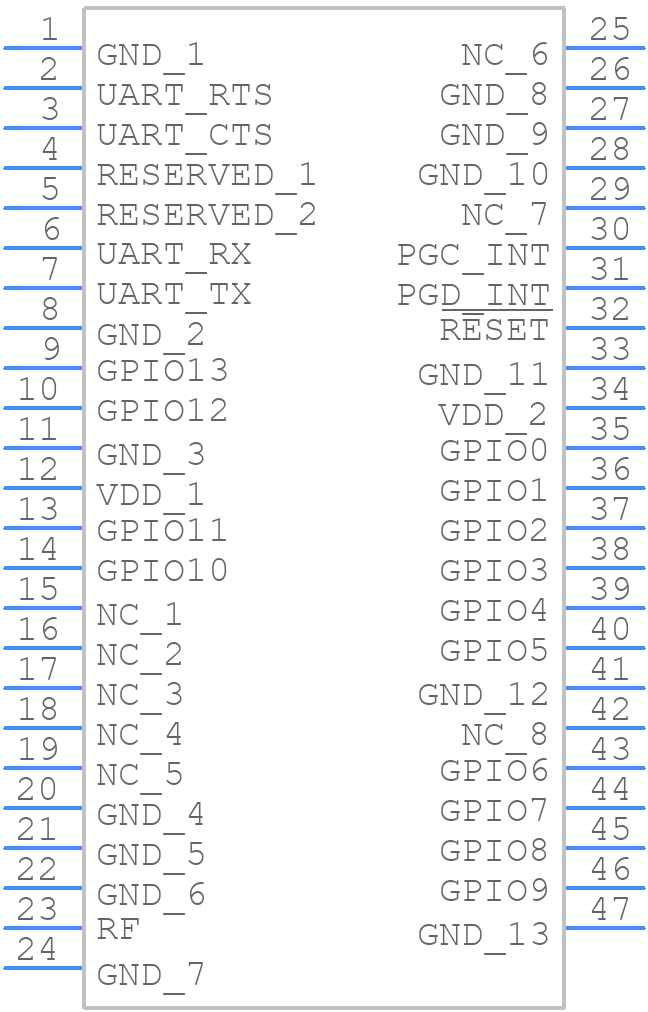

RN2903A-I/RM103 - Microchip - PCB symbol
click to zoom
PCB Footprints

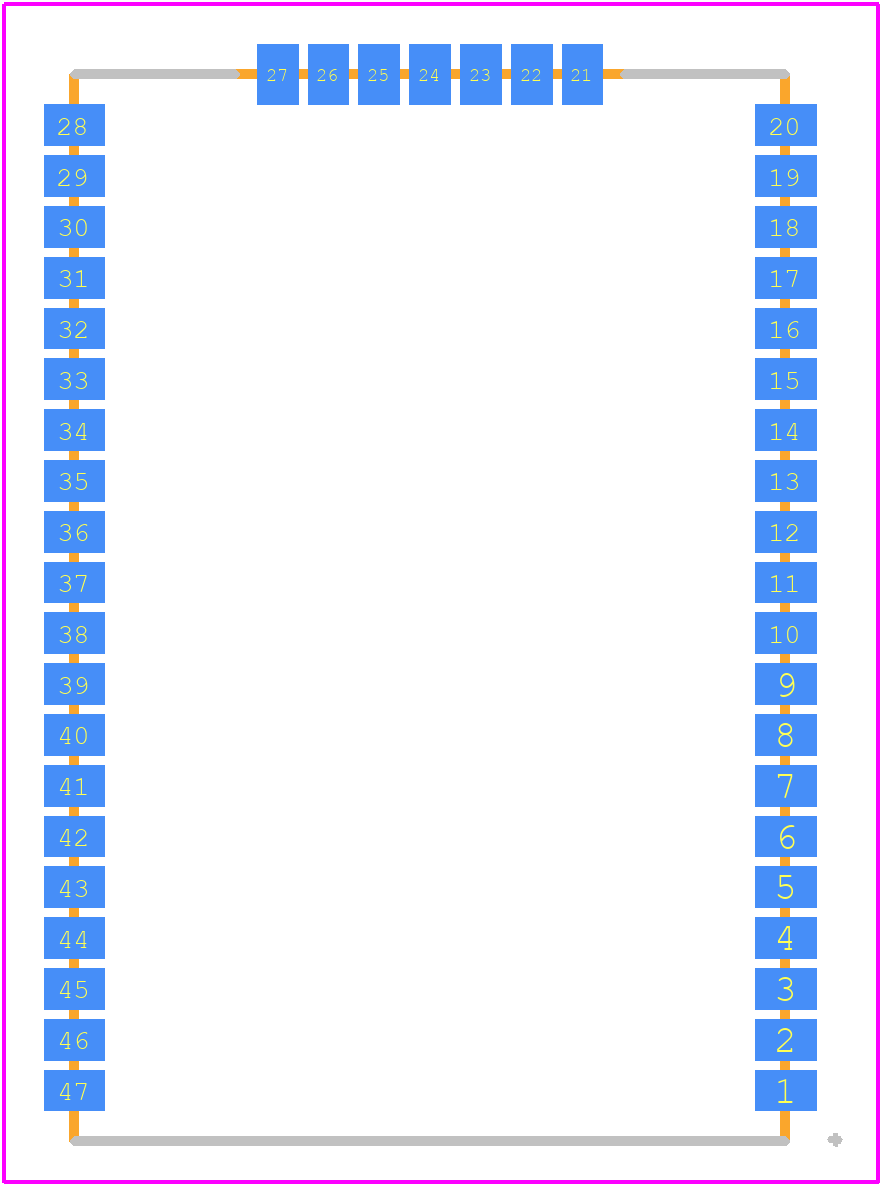

RN2903A-I/RM103 - Microchip PCB footprint - Other - Other - RN2903-I/RM095
click to zoom
3D Models
RN2903A-I/RM103 - Microchip - 3D model - Other - RN2903-I/RM095
click to zoom

RN2903A-I/RM103 Details

  • Manufacturer Part Number:

    RN2903A-I/RM103

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-47

  • Pin Count:

    47

  • Manufacturer Package Code:

    MODULE-47

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XXMA-N47

  • JESD-609 Code:

    e4

  • Length:

    26.67 mm

  • Number of Terminals:

    47

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    3.34 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.1 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    17.78 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

RN2903A-I/RM103 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a quarter-wave monopole antenna with a length of approximately 86 mm. The antenna should be placed at least 10 mm away from any metal surfaces to minimize detuning.
  • To configure the module for low-power operation, set the PWRMODE pin to LOW and use the lowest possible transmission power setting (e.g., +14 dBm). Additionally, consider using a lower data rate and shorter transmission intervals to minimize power consumption.
  • The maximum transmission distance achievable with this module depends on various factors such as antenna design, transmission power, and environmental conditions. However, in ideal conditions, the module can achieve a transmission distance of up to 10 km (6.2 miles) with a suitable antenna and transmission power setting.
  • To troubleshoot issues with the module's LoRaWAN connectivity, check the following: (1) ensure the module is properly configured and registered with a LoRaWAN network server, (2) verify the antenna is properly connected and oriented, (3) check the transmission power and data rate settings, and (4) use a packet sniffer or network analyzer to inspect the LoRaWAN packets.
  • Yes, the RN2903A-I/RM103 module can be used with non-LoRaWAN protocols such as FSK, GFSK, or OOK modulation schemes. However, this would require custom firmware development and may not be compatible with LoRaWAN networks.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN2903A-I/RM103 Overview

Use the download button to access the RN2903A-I/RM103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN290, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
