RN2903A-I/RM105 - Microchip

Description: MICROCHIP - RN2903A-I/RM105 - TRANSCEIVER MODULE, 300KBPS, 928MHZ

Download RN2903A-I/RM105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

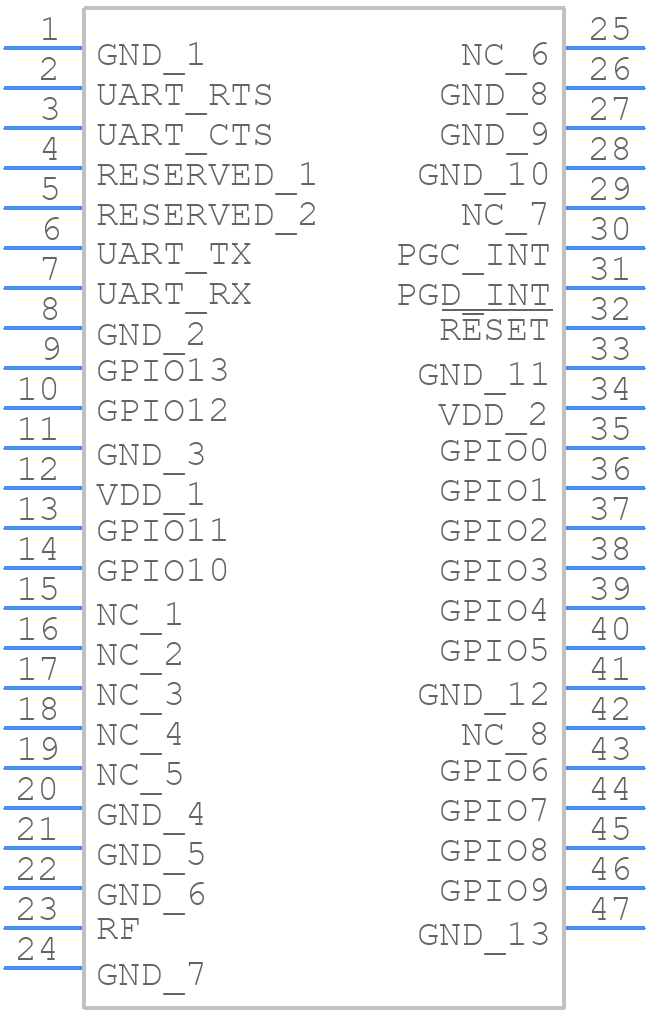

RN2903A-I/RM105 - Microchip - PCB symbol
click to zoom
PCB Footprints

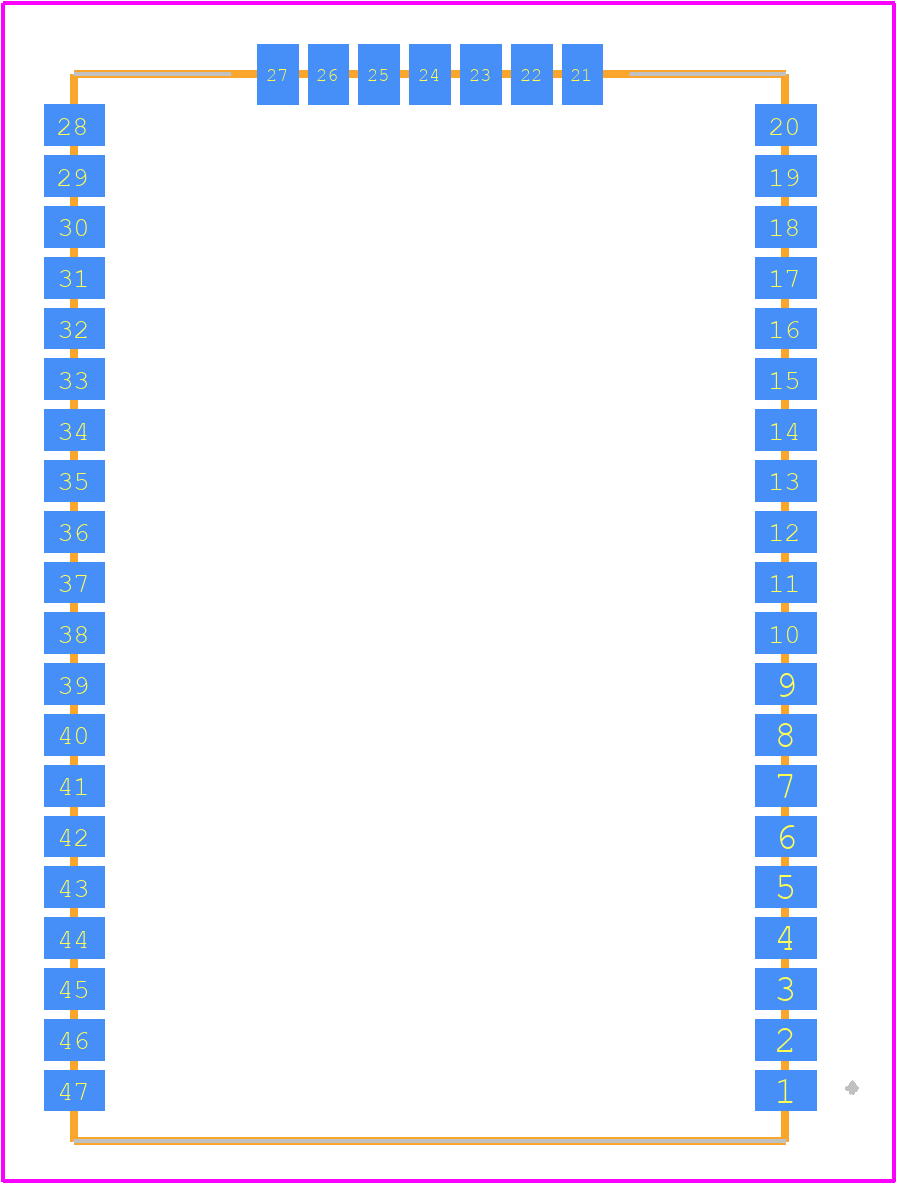

RN2903A-I/RM105 - Microchip PCB footprint - Other - Other - RN2903A-I/RM105-2
click to zoom
3D Models
RN2903A-I/RM105 - Microchip - 3D model - Other - RN2903A-I/RM105-2
click to zoom

RN2903A-I/RM105 Details

  • Manufacturer Part Number:

    RN2903A-I/RM105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-47

  • Pin Count:

    47

  • Manufacturer Package Code:

    MODULE-47

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-XXMA-N47

  • JESD-609 Code:

    e4

  • Length:

    26.7 mm

  • Number of Terminals:

    47

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.34 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.1 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    17.8 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

RN2903A-I/RM105 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a quarter-wave monopole antenna with a length of approximately 86 mm. The antenna should be placed at least 10 mm away from any metal surfaces to minimize detuning.
  • To configure the module for low-power operation, set the PWRMODE pin to LOW and use the ABP (Autonomous Boot Protocol) mode. Additionally, use the 'sleep' command to put the module into low-power mode when not in use.
  • The maximum transmission power of the RN2903A-I/RM105 module is +14 dBm.
  • To troubleshoot connectivity issues, check the module's power supply, antenna connection, and configuration settings. Use the 'at' command to verify the module's configuration and check for any error messages. Also, ensure that the module is properly registered with the LoRaWAN network.
  • No, the RN2903A-I/RM105 module is specifically designed for LoRaWAN networks and is not compatible with other wireless communication protocols.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN2903A-I/RM105 Overview

Use the download button to access the RN2903A-I/RM105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN290, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
