RN41-I/RM - Microchip

Description: Microchip RN41-I/RM Bluetooth Module 2.1 + EDR, 1.1, 1.2, 2.0

Download RN41-I/RM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

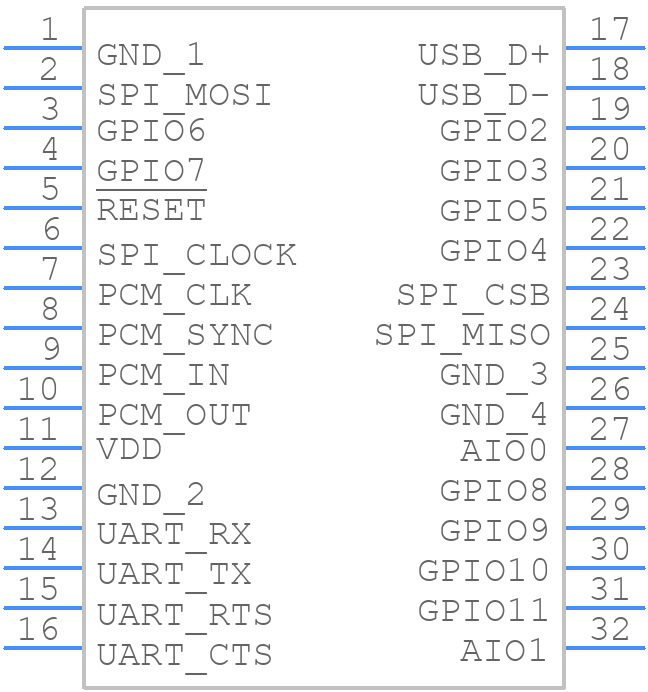

RN41-I/RM - Microchip - PCB symbol
click to zoom
PCB Footprints

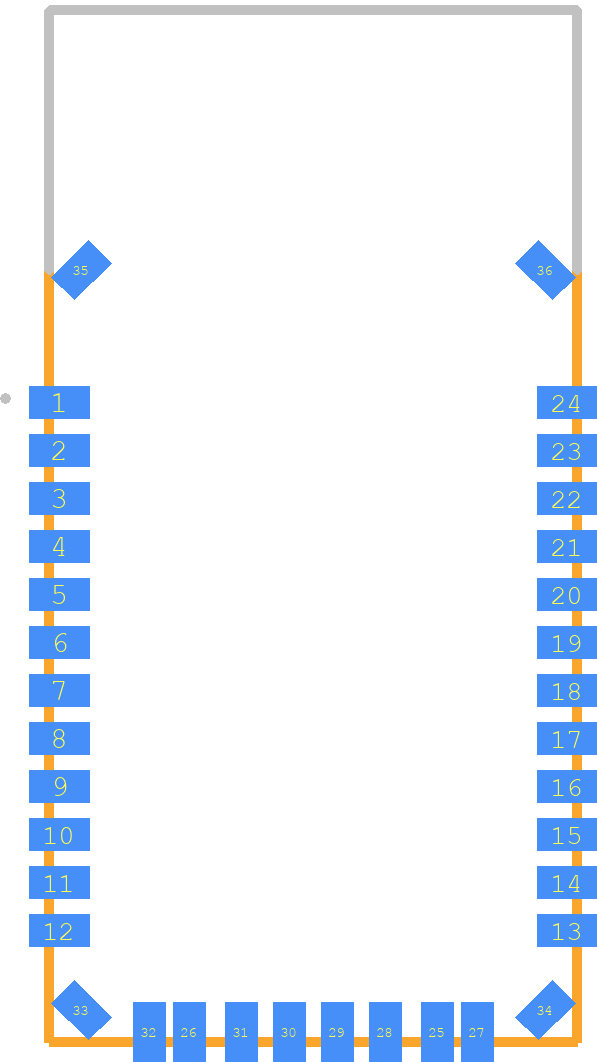

RN41-I/RM - Microchip PCB footprint - Other - Other - RN41-I/RM_1
click to zoom

RN41-I/RM Details

  • Manufacturer Part Number:

    RN41-I/RM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N35

  • Length:

    25.8 mm

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    13.2 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

RN41-I/RM Frequently Asked Questions (FAQs)

  • The maximum range of the RN41-I/RM module depends on the environment and the antenna used. In ideal conditions, the range can be up to 100 meters (330 feet) indoors and up to 1 kilometer (0.62 miles) outdoors.
  • To configure the RN41-I/RM module for Bluetooth pairing, you need to set the module to Command Mode by sending the '$$$' command. Then, use the 'SP' command to set the pairing mode, and the 'SN' command to set the device name and PIN code.
  • Yes, the RN41-I/RM module can be used with a microcontroller that only has a UART interface. The module can be configured to use a UART interface for communication, and it also supports flow control and hardware handshaking.
  • The firmware of the RN41-I/RM module can be updated using the Microchip Technology Inc's Bluetooth Development Kit (BDK) software. The BDK software provides a firmware update tool that allows you to update the module's firmware via a serial interface.
  • The RN41-I/RM module is a Bluetooth 2.1 + EDR module, which is not compatible with Bluetooth 5.0. However, Microchip Technology Inc offers other Bluetooth modules that are compatible with Bluetooth 5.0, such as the RN4871 module.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN41-I/RM Overview

Use the download button to access the RN41-I/RM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RN41-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
