RN41U-I/RM - Microchip

Description: Bluetooth Modules (802.15.1) USB firmware HCI over USB port

Download RN41U-I/RM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

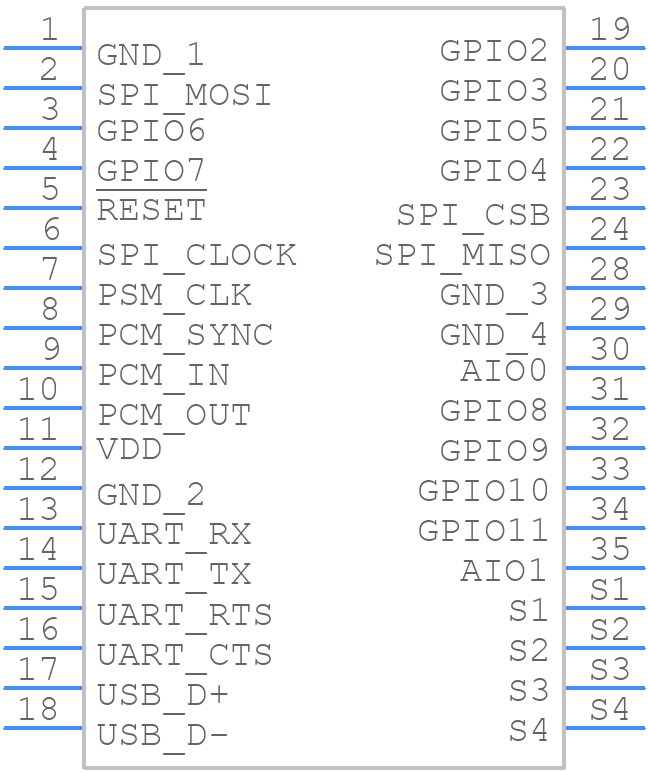

RN41U-I/RM - Microchip - PCB symbol
click to zoom
PCB Footprints

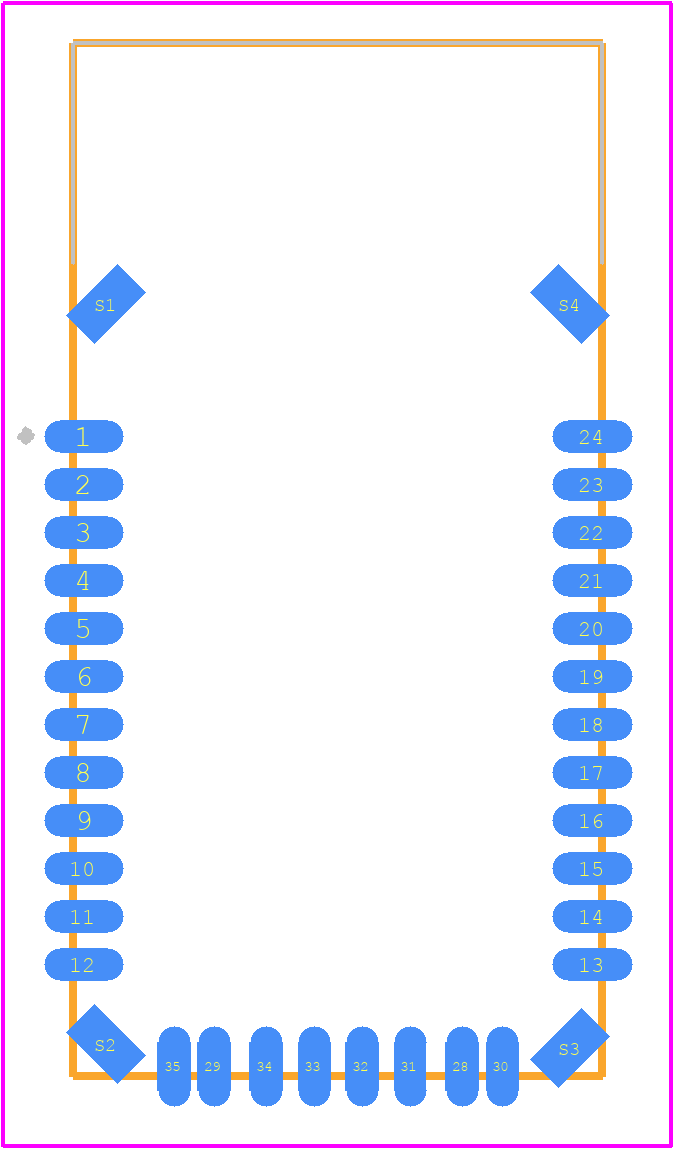

RN41U-I/RM - Microchip PCB footprint - Other - Other - RN41U-I/RM
click to zoom
3D Models
RN41U-I/RM - Microchip - 3D model - Other - RN41U-I/RM
click to zoom

RN41U-I/RM Details

  • Manufacturer Part Number:

    RN41U-I/RM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N35

  • Length:

    25.8 mm

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    13.2 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

RN41U-I/RM Frequently Asked Questions (FAQs)

  • The maximum range of the RN41U-I/RM module depends on the environment and the antenna used. In ideal conditions, it can reach up to 300 meters (1000 feet) line-of-sight. However, in practice, the range is typically around 100-200 meters (330-660 feet) indoors and up to 1 kilometer (0.62 miles) outdoors.
  • To configure the RN41U-I/RM module for BLE mode, you need to set the module to 'CMD' mode, then send the command 'SET BTMODE 2' to enable BLE mode. You can also use the 'SET BTMODE 0' command to switch back to classic Bluetooth mode.
  • Yes, the RN41U-I/RM module can be used with a microcontroller that only has a UART interface. The module has a built-in UART interface that can be used to communicate with the microcontroller. You can use the module's UART interface to send and receive data, and the module will handle the Bluetooth protocol stack.
  • The firmware of the RN41U-I/RM module can be updated using the Microchip's Bluetooth Development Kit (BDK) software. You need to connect the module to a PC using a serial interface, then use the BDK software to upload the new firmware to the module.
  • The RN41U-I/RM module is based on Bluetooth 4.0, but it is not compatible with Bluetooth 5.0. However, Microchip offers newer modules such as the RN52 and RN53 that support Bluetooth 5.0.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN41U-I/RM Overview

Use the download button to access the RN41U-I/RM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN41U, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
