RN42-I/RM - Microchip

Description: Bluetooth Bluetooth v2.1 +EDR, Class 2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Download RN42-I/RM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

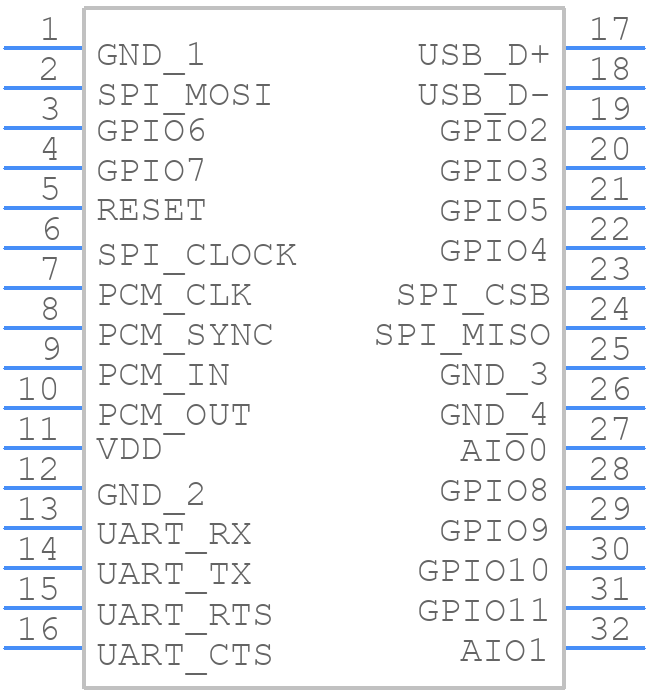

RN42-I/RM - Microchip - PCB symbol
click to zoom
PCB Footprints

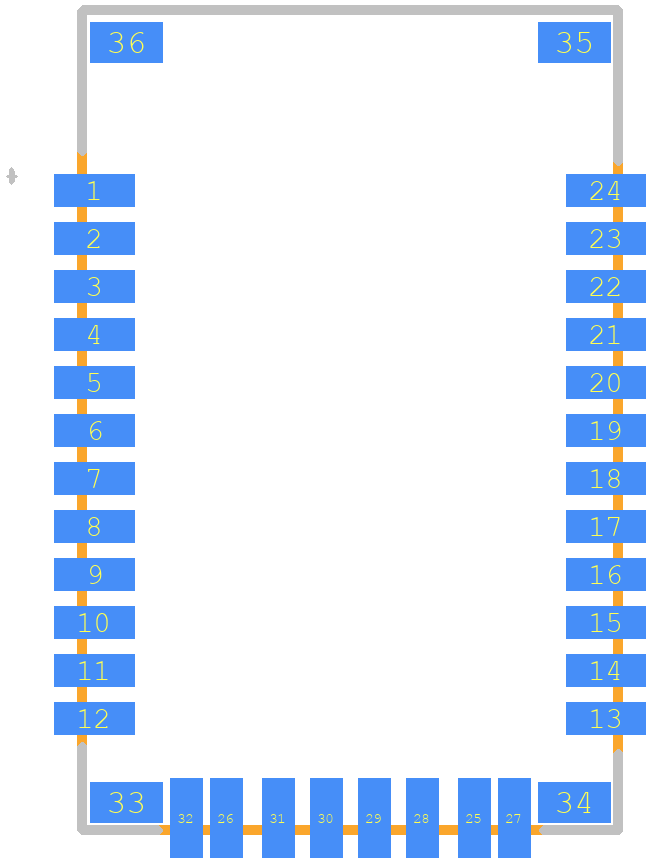

RN42-I/RM - Microchip PCB footprint - Other - Other - RN42
click to zoom
3D Models
RN42-I/RM - Microchip - 3D model - Other - RN42
click to zoom

RN42-I/RM Details

  • Manufacturer Part Number:

    RN42-I/RM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    35

  • Manufacturer Package Code:

    MODULE-35

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-XXMA-N35

  • Length:

    13.4 mm

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    25.6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

RN42-I/RM Frequently Asked Questions (FAQs)

  • The maximum range of the RN42-I/RM module is approximately 30 feet (10 meters) in open air, but this can vary depending on the environment and obstacles.
  • Yes, the RN42-I/RM module can operate with a 3.3V power supply, but it is recommended to use a 3.6V to 4.2V power supply for optimal performance.
  • To configure the RN42-I/RM module for SPP mode, you need to send the command 'SSP,0' to the module using a serial terminal or a microcontroller. This will put the module in SPP mode, allowing it to communicate with other Bluetooth devices.
  • Yes, the RN42-I/RM module can be used with a microcontroller that only has a UART interface. The module can be configured to use a UART interface, and it will translate the UART signals to Bluetooth signals.
  • The firmware of the RN42-I/RM module can be updated using a process called DFU (Device Firmware Update). You need to use a special tool provided by Microchip, and follow the instructions provided in the datasheet.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

RN42-I/RM Overview

Use the download button to access the RN42-I/RM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN42-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
