RN42-I/RM615 footprint, schematic symbol and 3D model by Microchip

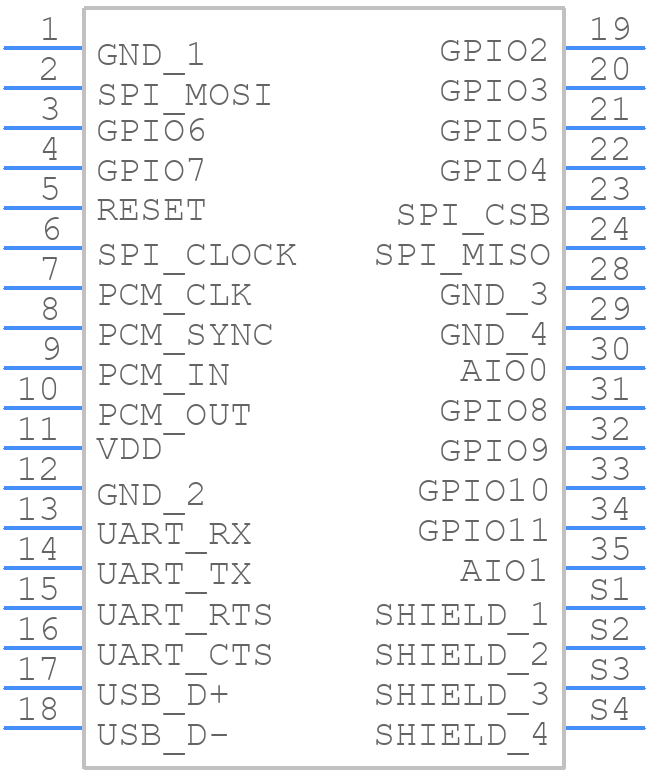

Symbol

click to zoom

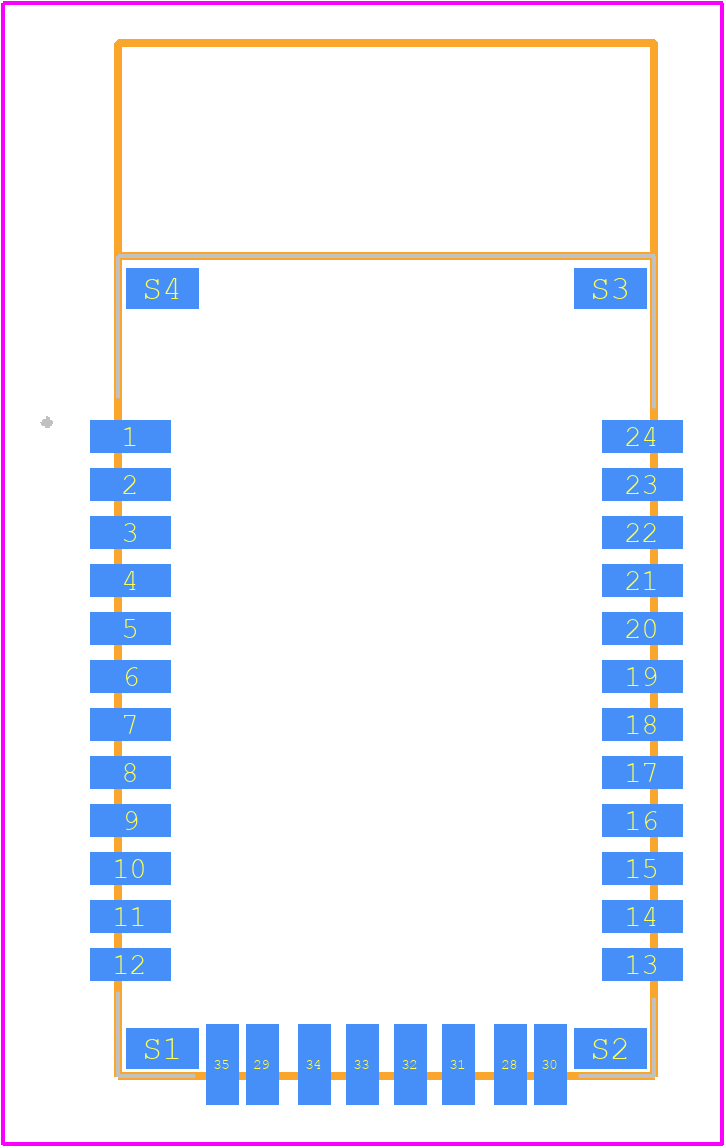

PCB Footprints

RN42-I/RM615 - Microchip PCB footprint - Other - Other - RN42_2020

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN42-I/RM615
Part Number RN42-I/RM615
Manufacturer Microchip
Pin Count 36
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RN42_2020
Released Date Jul 24, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RN42-I/RM615 Details

Manufacturer Part Number:
RN42-I/RM615
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Pin Count:
35
Manufacturer Package Code:
MODULE-35
Country Of Origin:
Mainland China
ECCN Code:
5A992.C
HTS Code:
8529.90.22.00
Factory Lead Time:
28 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
3
JESD-30 Code:
R-XXMA-N35
JESD-609 Code:
e4
Length:
25.8 mm
Number of Terminals:
35
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
2.4 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Form:
NO LEAD
Terminal Pitch:
1.2 mm
Terminal Position:
UNSPECIFIED
Width:
13.4 mm
uPs/uCs/Peripheral ICs Type:
RFSoC

RN42-I/RM615 Frequently Asked Questions (FAQs)

The maximum range of the RN42-I/RM615 module is approximately 20-30 meters (66-98 feet) in open air, but this can vary depending on the environment and obstacles.
Yes, the RN42-I/RM615 module is a standalone Bluetooth module that can be used with any microcontroller that has a UART interface, regardless of the manufacturer.
To configure the RN42-I/RM615 module for SPP mode, you need to send the command 'SSP,0' to the module using the UART interface. This will put the module in SPP mode, allowing it to emulate a serial port.
Yes, the RN42-I/RM615 module is designed to be low-power and can be used with battery-powered devices. It has a sleep mode that can be enabled to reduce power consumption when not in use.
The firmware of the RN42-I/RM615 module can be updated using the Microchip Bluetooth Development Kit or the Microchip Bluetooth Module Firmware Update Tool. The update process typically involves downloading the new firmware to the module using a UART interface.
