RN42N-I/RM footprint, schematic symbol and 3D model by Microchip

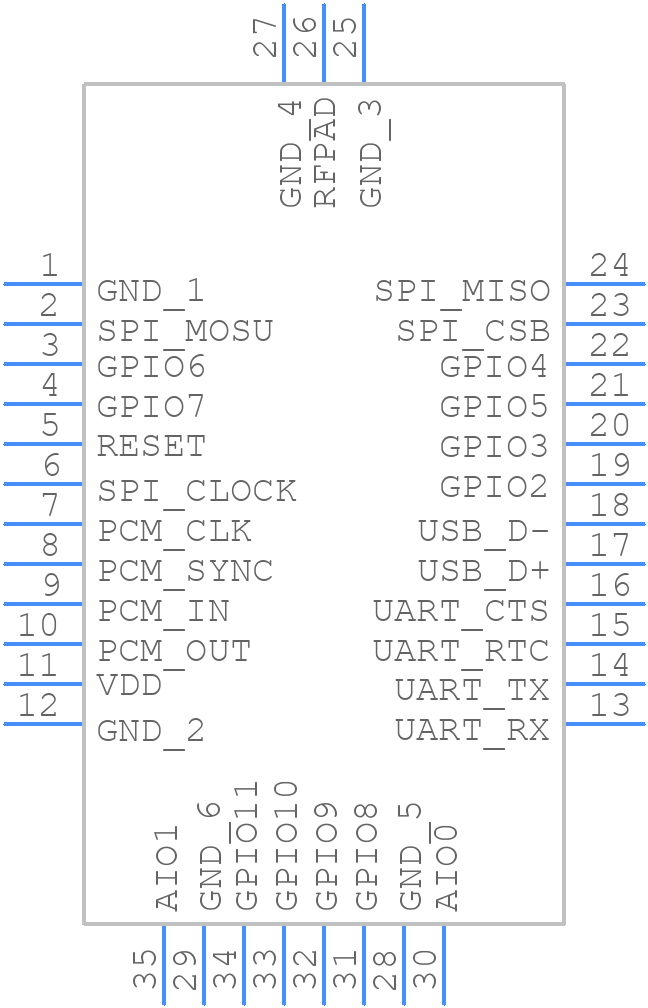

Symbol

click to zoom

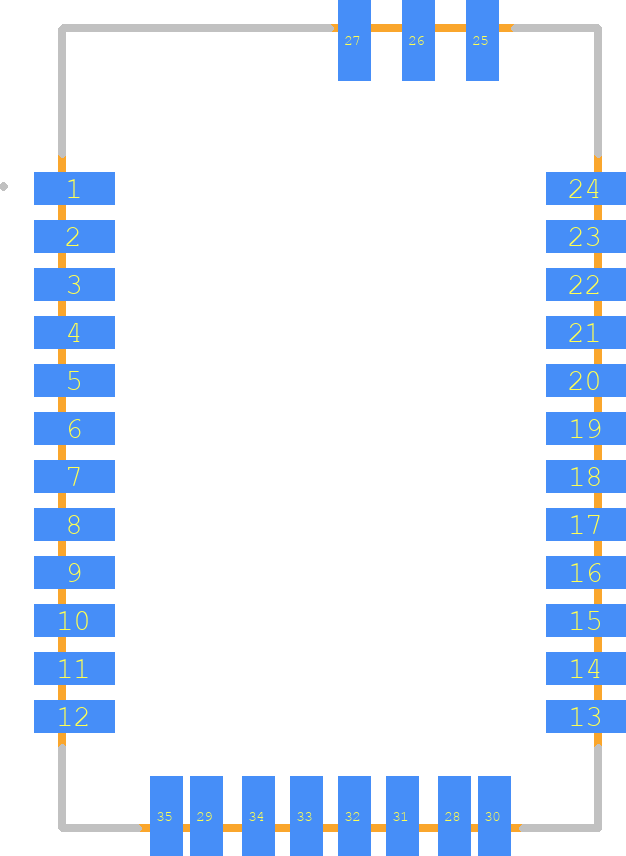

PCB Footprints

RN42N-I/RM - Microchip PCB footprint - Other - Other - RN42N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN42N-I/RM
Part Number RN42N-I/RM
Manufacturer Microchip
Pin Count 35
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - RN42N
Released Date Oct 25, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RN42N-I/RM Details

Manufacturer Part Number:
RN42N-I/RM
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
35
Manufacturer Package Code:
MODULE-35
Country Of Origin:
Mainland China
HTS Code:
8542.31.00.30
Factory Lead Time:
12 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
3
JESD-30 Code:
R-XQMA-N35
JESD-609 Code:
e4
Length:
13.4 mm
Number of Terminals:
35
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
QMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
2.4 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Terminal Finish:
Nickel/Gold (Ni/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
1.2 mm
Terminal Position:
QUAD
Width:
20 mm
uPs/uCs/Peripheral ICs Type:
RFSoC

RN42N-I/RM Frequently Asked Questions (FAQs)

The maximum range of the RN42N-I/RM module is approximately 20-30 meters (66-98 feet) in open air, but this can vary depending on the environment and obstacles.
Yes, the RN42N-I/RM module is a standalone Bluetooth module that can be used with any microcontroller that has a UART interface, regardless of the manufacturer.
To configure the RN42N-I/RM module for SPP mode, you need to send the command 'SX,1' to the module using the UART interface. This will put the module in SPP mode, allowing it to communicate with other Bluetooth devices using the SPP profile.
The power consumption of the RN42N-I/RM module varies depending on the mode of operation. In idle mode, the module consumes around 50 μA, while in connected mode, it consumes around 30 mA. In transmit mode, the module consumes around 100 mA.
Yes, the RN42N-I/RM module is suitable for use in battery-powered devices due to its low power consumption. However, it's recommended to use a power management strategy to minimize power consumption and extend battery life.

Trust Checks

Expert Contribution

System Verified

Community Approved

RN42N-I/RM Overview

Use the download button to access the RN42N-I/RM schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RN42N, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
