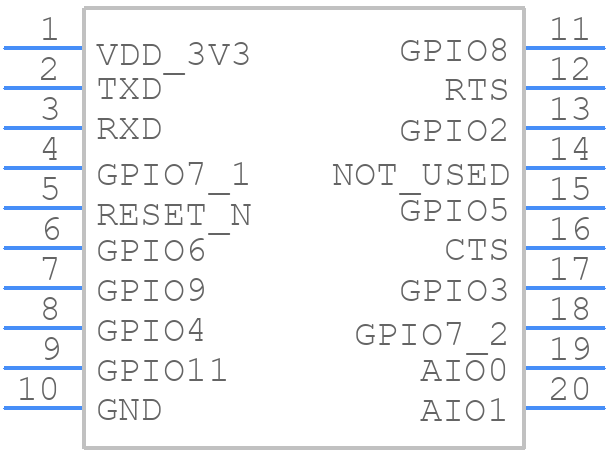

RN42XVP-I/RM footprint, schematic symbol and 3D model by Microchip

Symbol

click to zoom

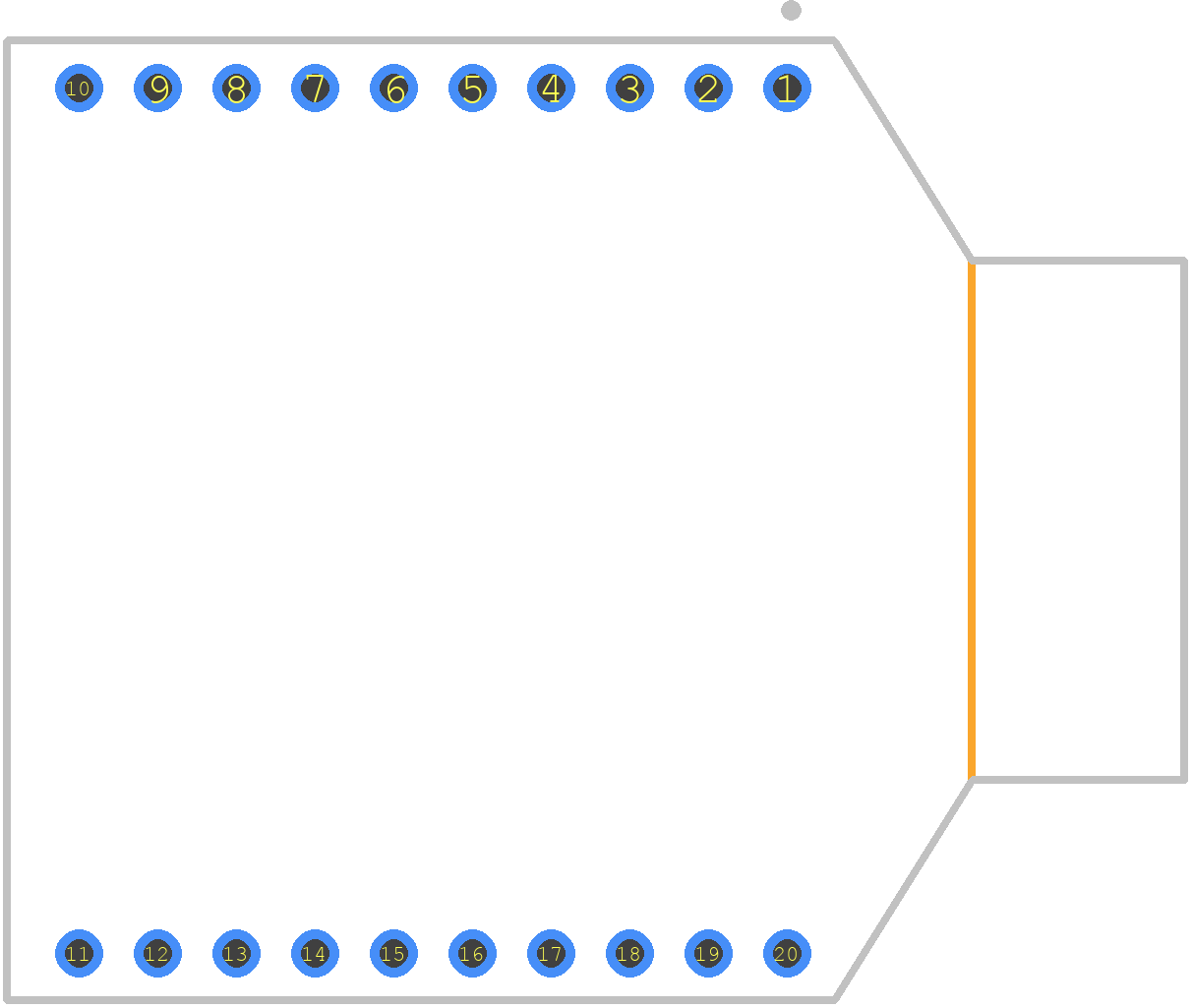

PCB Footprints

RN42XVP-I/RM - Microchip PCB footprint - Other - Other - RN42XVP-I/RM

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN42XVP-I/RM
Part Number RN42XVP-I/RM
Manufacturer Microchip
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RN42XVP-I/RM
Released Date Feb 23, 2017
Last Modified Date Apr 9, 2026 9:22 AM UTC
Pinout / Pin List Click Here (Member Only)

RN42XVP-I/RM Details

Manufacturer Part Number:
RN42XVP-I/RM
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
MODULE-20
Pin Count:
20
Manufacturer Package Code:
MODULE-20
Country Of Origin:
USA
HTS Code:
8542.31.00.30
Factory Lead Time:
12 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
0
JESD-30 Code:
R-XDMA-T20
JESD-609 Code:
e4
Length:
29.9 mm
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
NO
Terminal Finish:
Nickel/Gold (Ni/Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2 mm
Terminal Position:
DUAL
Width:
24.4 mm
uPs/uCs/Peripheral ICs Type:
RFSoC

RN42XVP-I/RM Frequently Asked Questions (FAQs)

The maximum range of the RN42XVP-I/RM module is approximately 300 feet (91 meters) in open air, but this can vary depending on the environment and obstacles.
Yes, the RN42XVP-I/RM module is a standalone Bluetooth module that can be used with any microcontroller that has a UART interface, regardless of the manufacturer.
To configure the RN42XVP-I/RM module for SPP mode, you need to send the command 'SSP,XXXX' where XXXX is the baud rate, followed by 'R,1' to set the module to SPP mode. For example, 'SSP,9600R,1' sets the module to 9600 baud and SPP mode.
Yes, the RN42XVP-I/RM module is designed to be low-power and can be used in battery-powered devices. It has a sleep mode that can be used to reduce power consumption when not in use.
The firmware of the RN42XVP-I/RM module can be updated using the Microchip Bluetooth Development Kit or the Microchip Bluetooth Module Firmware Update Tool. The update process typically involves downloading the new firmware to the module using a serial interface.

Trust Checks

Expert Contribution

System Verified

Community Approved

RN42XVP-I/RM Overview

Use the download button to access the RN42XVP-I/RM schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RN42X, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
