Part Image

RN4678-V/RM113 - Microchip

Description: Bluetooth Modules (802.15.1) Bluetooth 5 Dual Mode with Shield & Antenna Module with ASCII Interface FW 1.13

Download RN4678-V/RM113 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

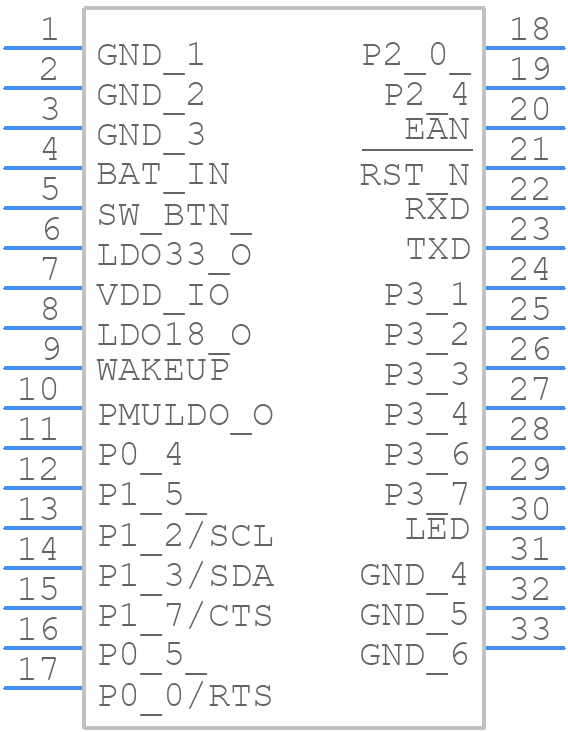

RN4678-V/RM113 - Microchip - PCB symbol
click to zoom
PCB Footprints

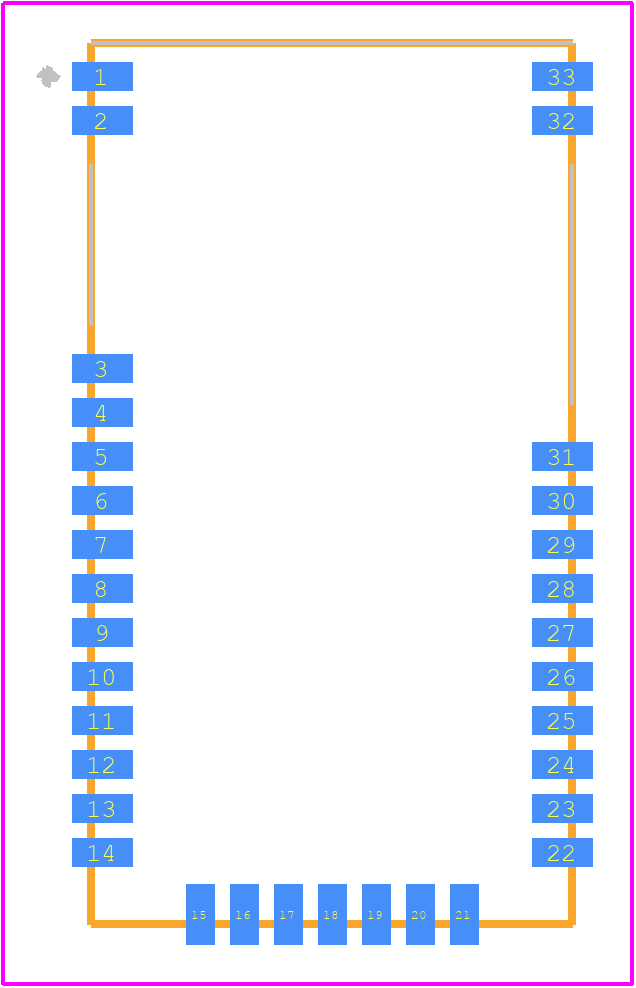

RN4678-V/RM113 - Microchip PCB footprint - Other - Other - RN4678-V/RM113-3
click to zoom
3D Models
RN4678-V/RM113 - Microchip - 3D model - Other - RN4678-V/RM113-3
click to zoom

RN4678-V/RM113 Details

  • Manufacturer Part Number:

    RN4678-V/RM113

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-33

  • Pin Count:

    33

  • Manufacturer Package Code:

    MODULE-33

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-XXMA-N33

  • JESD-609 Code:

    e4

  • Length:

    22 mm

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    2.1 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4678-V/RM113 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a 50-ohm, quarter-wavelength monopole antenna with a minimum of 10 mm clearance from the module. A well-designed antenna can significantly improve the module's range and reliability.
  • To configure the module for low-power operation, set the sleep mode to 'Deep Sleep' and adjust the 'Wake-up Timer' to the desired interval. Additionally, disable unnecessary peripherals and reduce the transmission power to minimize power consumption.
  • The maximum data transfer rate achievable with the RN4678-V/RM113 module is up to 2 Mbps, depending on the specific configuration and application.
  • To implement secure data transmission, use the module's built-in encryption capabilities, such as AES-128, and ensure that data is encrypted before transmission. Additionally, implement secure key exchange and authentication mechanisms to prevent unauthorized access.
  • The operating temperature range for the RN4678-V/RM113 module is -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN4678-V/RM113 Overview

Use the download button to access the RN4678-V/RM113 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN467, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
