RN4870-I/RM128 - Microchip

Description: MICROCHIP - RN4870-I/RM128 - Bluetooth 4.2 BLE Module, ASCII Interface, Shielded, Antenna, 12x22mm, Industrial Temp, 33 MODULE 12x22mm TRAY

Download RN4870-I/RM128 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

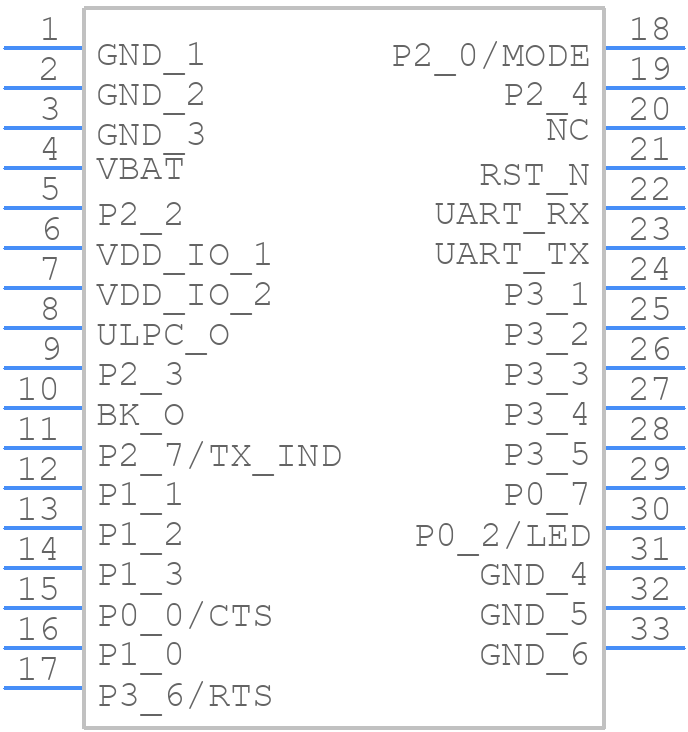

RN4870-I/RM128 - Microchip - PCB symbol
click to zoom
PCB Footprints

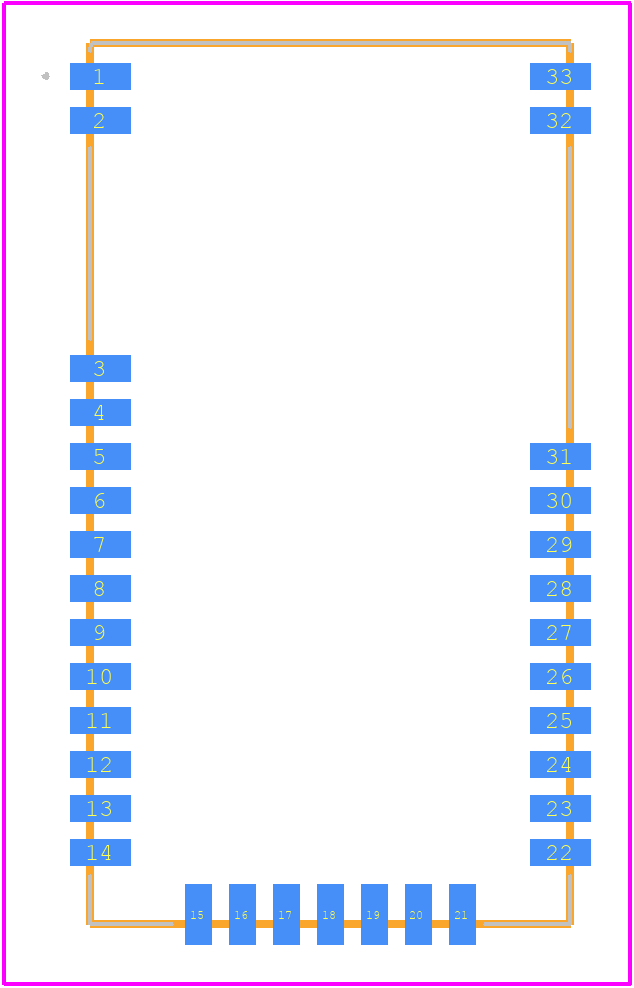

RN4870-I/RM128 - Microchip PCB footprint - Other - Other - RN4870-I/RM128-3
click to zoom
3D Models
RN4870-I/RM128 - Microchip - 3D model - Other - RN4870-I/RM128-3
click to zoom

RN4870-I/RM128 Details

  • Manufacturer Part Number:

    RN4870-I/RM128

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-33

  • Pin Count:

    33

  • Manufacturer Package Code:

    MODULE-33

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XXMA-N33

  • Length:

    11.5 mm

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4870-I/RM128 Frequently Asked Questions (FAQs)

  • The maximum transmission power of the RN4870-I/RM128 module is +4 dBm.
  • The RN4870-I/RM128 module can be configured for BLE operation using the Microchip MLA library or by sending specific AT commands to the module. Refer to the Microchip MLA documentation or the RN4870-I/RM128 datasheet for more information.
  • The range of the RN4870-I/RM128 module depends on the environment and the antenna used. In general, the module can achieve a range of up to 100 meters (330 feet) in open air, but this can be affected by obstacles, interference, and other factors.
  • Yes, the RN4870-I/RM128 module can be used with non-Microchip microcontrollers, but it may require additional development and testing to ensure compatibility.
  • The firmware of the RN4870-I/RM128 module can be updated using the Microchip MLA library or by using a dedicated firmware update tool. Refer to the Microchip MLA documentation or the RN4870-I/RM128 datasheet for more information.
