RN4870-I/RM130 - Microchip

Description: Bluetooth Modules (802.15.1) Bluetooth BLE Module, ASCII Interface, Shielded, Antenna, 12x22mm, Industrial Temp

Download RN4870-I/RM130 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RN4870-I/RM130 - Microchip - PCB symbol
click to zoom
PCB Footprints

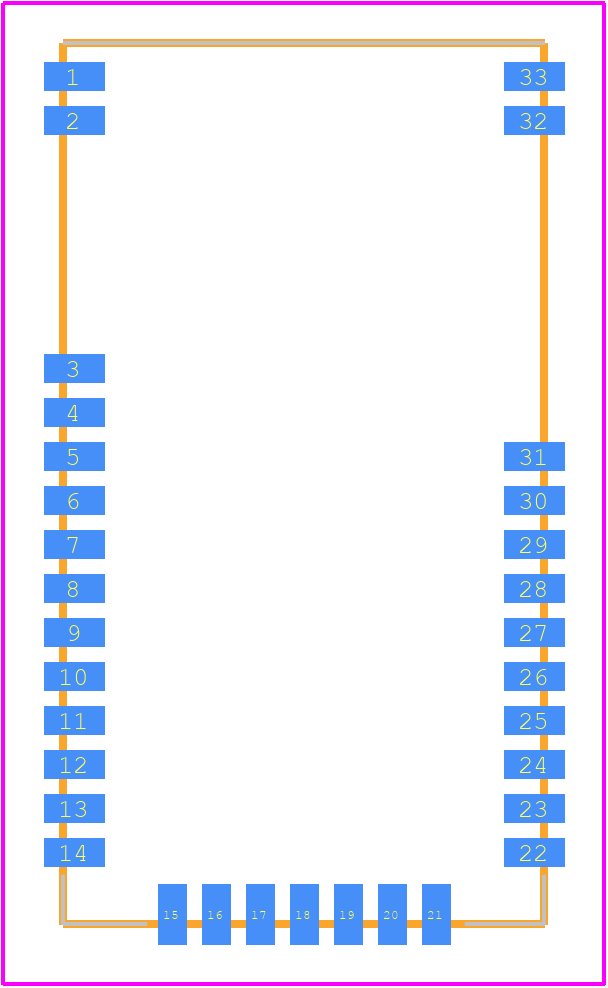

RN4870-I/RM130 - Microchip PCB footprint - Other - Other - RN4870
click to zoom
3D Models
RN4870-I/RM130 - Microchip - 3D model - Other - RN4870
click to zoom

RN4870-I/RM130 Details

  • Manufacturer Part Number:

    RN4870-I/RM130

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-33

  • Pin Count:

    33

  • Manufacturer Package Code:

    MODULE-33

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    SEATED HGT-NOM

  • JESD-30 Code:

    R-XXMA-N33

  • Length:

    22 mm

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4870-I/RM130 Frequently Asked Questions (FAQs)

  • The recommended way to handle the module's power-on reset is to connect the RST pin to VCC through a 10kΩ resistor. This ensures a clean reset and prevents any unwanted resets during normal operation.
  • To troubleshoot issues with the module's Bluetooth connectivity, start by checking the module's power supply and ensuring it is properly connected to a power source. Next, check the Bluetooth settings on the connected device and ensure it is set to discoverable mode. If issues persist, try resetting the module by connecting the RST pin to GND for 1 second.
  • Yes, the module's GPIO pins can be used for other purposes besides Bluetooth connectivity. However, it is recommended to use the GPIO pins for Bluetooth-related tasks only to avoid interference and ensure reliable operation.
  • To handle the module's firmware updates, download the latest firmware from Microchip's website and follow the provided instructions for updating the firmware. Make sure to backup any important data before updating the firmware.
  • The module is designed to operate in a temperature range of -40°C to 85°C. However, it is recommended to operate the module in a temperature range of 0°C to 70°C for optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN4870-I/RM130 Overview

Use the download button to access the RN4870-I/RM130 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN487, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
