RN4871-I/RM128 - Microchip

Description: Bluetooth / 802.15.1 Modules Bluetooth 4.2 BLE Module, ASCII Interface, Shielded, Antenna, 9x11.5mm, Industrial Temp

Download RN4871-I/RM128 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

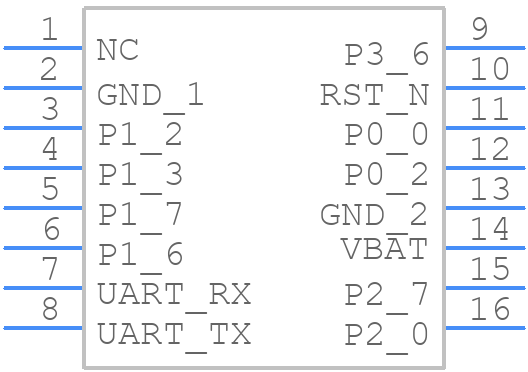

RN4871-I/RM128 - Microchip - PCB symbol
click to zoom
PCB Footprints
RN4871-I/RM128 - Microchip PCB footprint - Other - Other - RN4871
click to zoom
3D Models
RN4871-I/RM128 - Microchip - 3D model - Other - RN4871
click to zoom

RN4871-I/RM128 Details

  • Manufacturer Part Number:

    RN4871-I/RM128

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    MODULE-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    SEATED HGT-NOM

  • JESD-30 Code:

    R-XXMA-N16

  • Length:

    11.5 mm

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC
