RN4871-I/RM140 - Microchip

Description: Bluetooth Bluetooth v5.0 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount

Download RN4871-I/RM140 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

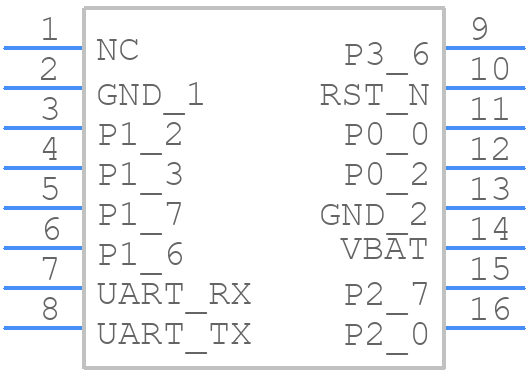

RN4871-I/RM140 - Microchip - PCB symbol
click to zoom
PCB Footprints
RN4871-I/RM140 - Microchip PCB footprint - Other - Other - 16-SMD Module
click to zoom
3D Models
RN4871-I/RM140 - Microchip - 3D model - Other - 16-SMD Module
click to zoom

RN4871-I/RM140 Details

  • Manufacturer Part Number:

    RN4871-I/RM140

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    MODULE-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XXMA-N16

  • Length:

    11.5 mm

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    TRIPLE

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4871-I/RM140 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a 1/4 wavelength monopole antenna with a length of around 17mm. A good antenna design is critical for achieving optimal range and reliability.
  • To configure the module for low power consumption, set the module to sleep mode when not in use. The RN4871-I/RM140 has a sleep current of around 1.5uA. You can also adjust the transmission power and data rate to minimize power consumption.
  • The maximum range of the RN4871-I/RM140 module depends on the environment and the antenna design. In ideal conditions, the module can achieve a range of up to 100 meters. However, in practice, the range is typically around 30-50 meters.
  • To implement secure data transmission with the RN4871-I/RM140 module, use the built-in encryption and authentication features. The module supports AES-128 encryption and has a built-in random number generator for secure key generation.
  • The maximum data rate of the RN4871-I/RM140 module is 2Mbps. However, the actual data rate may be lower depending on the environment and the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN4871-I/RM140 Overview

Use the download button to access the RN4871-I/RM140 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN487, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
