RN4871-V/RM118 - Microchip

Description: MICROCHIP - RN4871-V/RM118 - Bluetooth® Low Energy v4.2Module W/Antenna, 2.442Mhz, 0.1Dbi

Download RN4871-V/RM118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

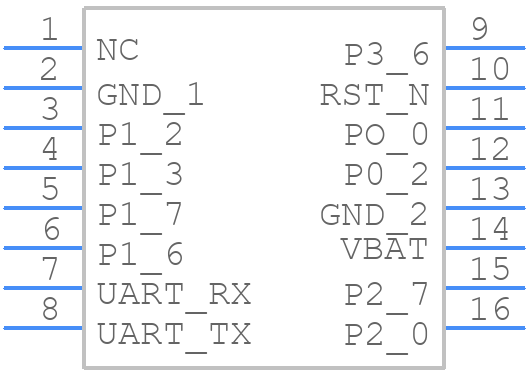

RN4871-V/RM118 - Microchip - PCB symbol
click to zoom
PCB Footprints
RN4871-V/RM118 - Microchip PCB footprint - Other - Other - RN4871-V/RM118-4
click to zoom
3D Models
RN4871-V/RM118 - Microchip - 3D model - Other - RN4871-V/RM118-4
click to zoom

RN4871-V/RM118 Details

  • Manufacturer Part Number:

    RN4871-V/RM118

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    MODULE-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Date Of Intro:

    2016-04-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-XXMA-N16

  • Length:

    11.5 mm

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    TRIPLE

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4871-V/RM118 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a 1/4 wavelength monopole antenna with a 50-ohm impedance. The antenna should be placed at least 10mm away from the module's ground plane to minimize detuning effects.
  • To configure the module for low power consumption, set the module to sleep mode using the 'SN' command. You can also adjust the transmission power using the 'TP' command and set the module to use a lower data rate using the 'DR' command.
  • The maximum range of the RN4871-V/RM118 module depends on the environment and the antenna design. In ideal conditions, the module can achieve a range of up to 100 meters (330 feet) indoors and up to 1 kilometer (0.62 miles) outdoors.
  • To implement secure data transmission, use the module's built-in encryption capabilities, such as AES-128 encryption. You can also use secure protocols like SSL/TLS or HTTPS to encrypt data transmission.
  • The recommended power supply voltage for the RN4871-V/RM118 module is 3.3V with a tolerance of +/- 10%. The module can operate from a power supply voltage range of 2.7V to 3.6V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN4871-V/RM118 Overview

Use the download button to access the RN4871-V/RM118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN487, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
