RN4871-V/RM140 - Microchip

Description: Bluetooth Modules (802.15.1) Bluetooth Low Energy BLE Module, Shielded, Antenna, ASCII Interface, 9x11.5mm

Download RN4871-V/RM140 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

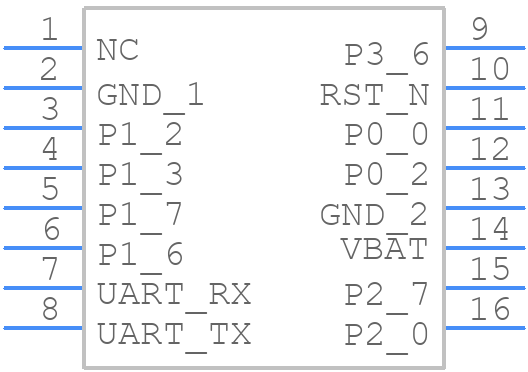

RN4871-V/RM140 - Microchip - PCB symbol
click to zoom
PCB Footprints
RN4871-V/RM140 - Microchip PCB footprint - Other - Other - 9 mm x 11.5 mm
click to zoom
3D Models
RN4871-V/RM140 - Microchip - 3D model - Other - 9 mm x 11.5 mm
click to zoom

RN4871-V/RM140 Details

  • Manufacturer Part Number:

    RN4871-V/RM140

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    MODULE-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XXMA-N16

  • Length:

    11.5 mm

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

RN4871-V/RM140 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a 1/4 wavelength monopole antenna with a 50-ohm impedance. The antenna should be placed at least 10mm away from the module to ensure optimal radiation patterns.
  • To configure the module for low power consumption, set the sleep mode to 'Deep Sleep' and adjust the sleep timer to the desired interval. Additionally, disable unnecessary peripherals and reduce the transmission power to minimize energy consumption.
  • The maximum data transfer rate of the RN4871-V/RM140 module is 2 Mbps, but it can be adjusted to lower rates (e.g., 1 Mbps, 500 kbps) to optimize power consumption and range.
  • Yes, the RN4871-V/RM140 module can be used with non-Microchip microcontrollers, but it may require additional programming and configuration to ensure compatibility.
  • To implement secure data transmission, use the built-in AES-128 encryption and decryption capabilities of the module. Additionally, use secure protocols such as SSL/TLS or DTLS to ensure end-to-end encryption.
