RN4871U-V/RM118 - Microchip

Description: Bluetooth / 802.15.1 Modules BT 4.2 BLE Module UnShielded 6x8mm

Download RN4871U-V/RM118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

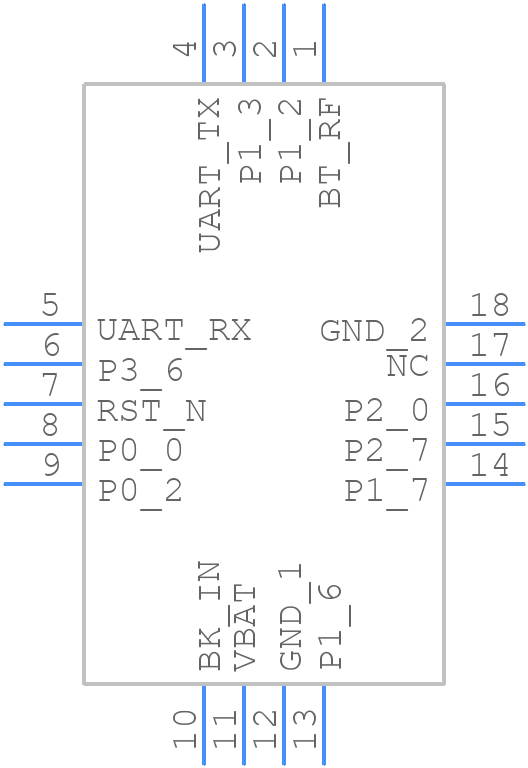

RN4871U-V/RM118 - Microchip - PCB symbol
click to zoom
PCB Footprints
RN4871U-V/RM118 - Microchip PCB footprint - Other - Other - RN4871U
click to zoom
3D Models
RN4871U-V/RM118 - Microchip - 3D model - Other - RN4871U
click to zoom

RN4871U-V/RM118 Details

  • Manufacturer Part Number:

    RN4871U-V/RM118

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    MODULE-17

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    17 Weeks

  • Date Of Intro:

    2016-04-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-XXMA-N16

  • Length:

    8 mm

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4871U-V/RM118 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a 1/4 wavelength monopole antenna with a length of around 17mm. However, the optimal antenna design may vary depending on the specific application and environment.
  • To configure the module for low power consumption, set the module to sleep mode when not in use, use the lowest possible transmission power, and adjust the transmission interval to minimize power consumption. Additionally, consider using the module's built-in power-saving features such as the 'sniff' mode.
  • The maximum range of the RN4871U-V/RM118 module depends on the environment and the antenna design. In ideal conditions, the module can achieve a range of up to 100 meters. However, in practice, the range may be limited to around 30-50 meters due to obstacles and interference.
  • To implement secure data transmission with the RN4871U-V/RM118 module, use encryption protocols such as AES-128 or AES-256, and implement secure key exchange mechanisms such as Elliptic Curve Cryptography (ECC). Additionally, consider using secure communication protocols such as SSL/TLS.
  • The maximum data transfer rate of the RN4871U-V/RM118 module is 2 Mbps. However, the actual data transfer rate may be lower depending on the specific application and environment.
