RN52-I/RM - Microchip

Description: Bluetooth Bluetooth v3.0, Class 2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Download RN52-I/RM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

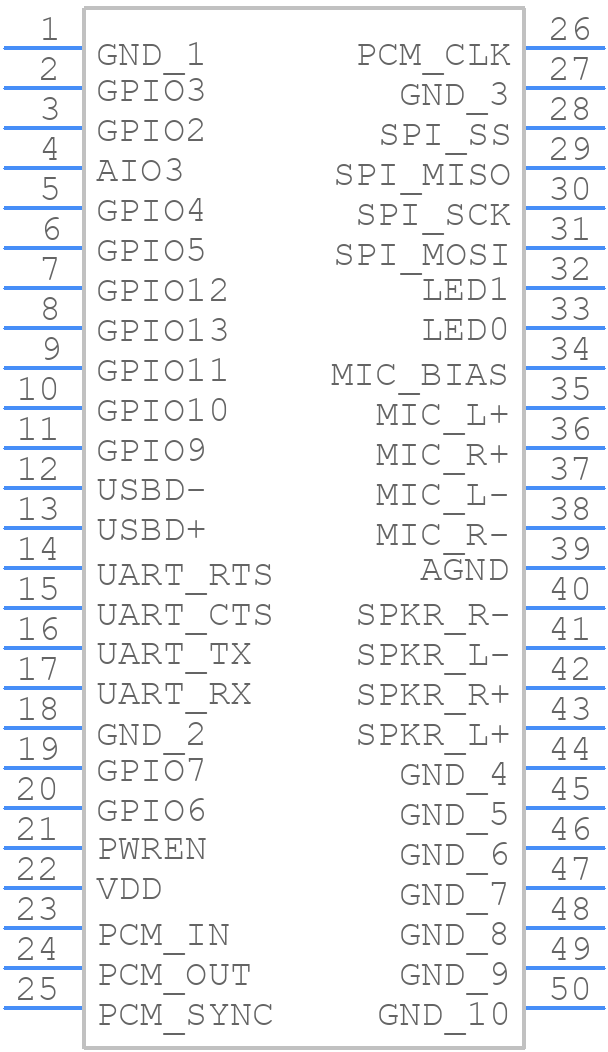

RN52-I/RM - Microchip - PCB symbol
click to zoom
PCB Footprints

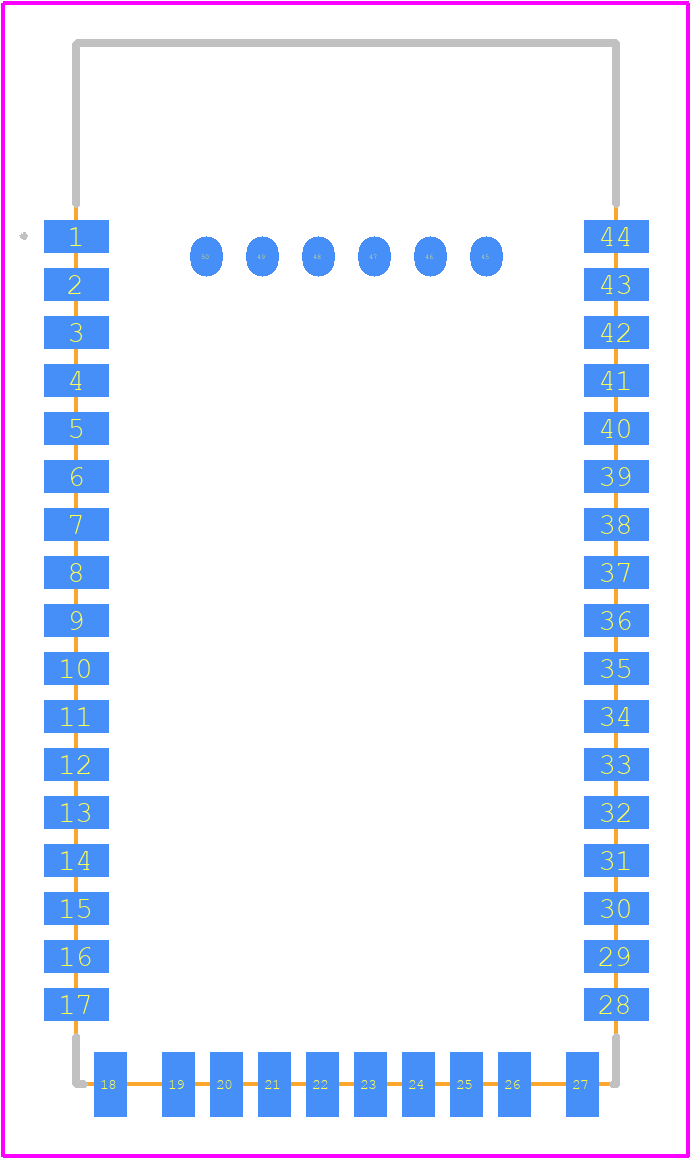

RN52-I/RM - Microchip PCB footprint - Other - Other - RN52-I/RM-2
click to zoom
3D Models
RN52-I/RM - Microchip - 3D model - Other - RN52-I/RM-2
click to zoom

RN52-I/RM Details

  • Manufacturer Part Number:

    RN52-I/RM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-50

  • Pin Count:

    35

  • Manufacturer Package Code:

    MODULE-35

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N50

  • Length:

    26 mm

  • Number of Terminals:

    50

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    13.5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN52-I/RM Frequently Asked Questions (FAQs)

  • A quarter-wavelength monopole antenna or a PCB antenna with a 50-ohm impedance matching network is recommended for optimal Bluetooth performance.
  • The RN52-I/RM module can be configured using the Microchip ASCII Command Set. The module can be controlled using a microcontroller via a UART interface.
  • The maximum range of the RN52-I/RM module is approximately 30 meters (100 feet) in open air, but this can vary depending on the environment and obstacles.
  • Yes, the RN52-I/RM module supports multi-point Bluetooth connections, allowing it to connect to multiple devices simultaneously.
  • The RN52-I/RM module supports audio streaming using the Advanced Audio Distribution Profile (A2DP) and the Audio/Video Remote Control Profile (AVRCP). Audio data can be streamed using the I2S interface.
