RN52-I/RM116 footprint, schematic symbol and 3D model by Microchip

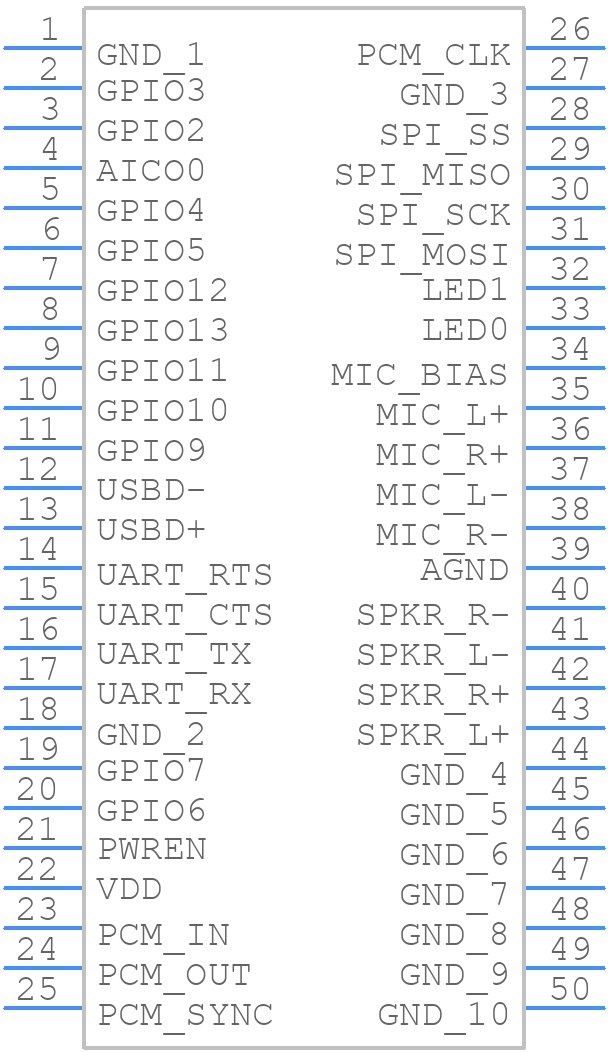

Symbol

click to zoom

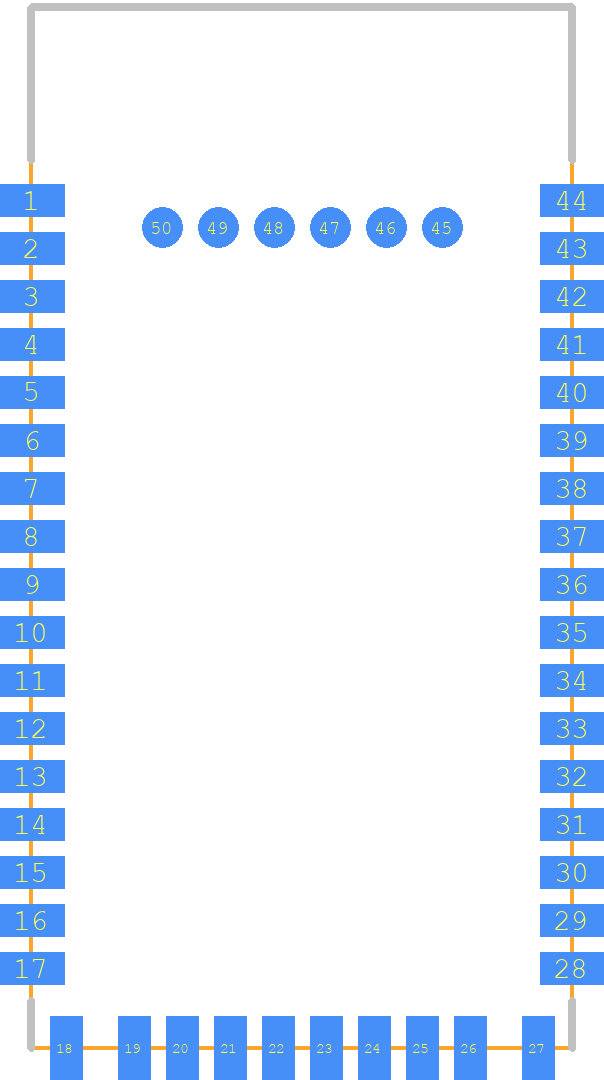

PCB Footprints

RN52-I/RM116 - Microchip PCB footprint - Other - Other - RN52-DS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN52-I/RM116
Part Number RN52-I/RM116
Manufacturer Microchip
Pin Count 50
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RN52-DS
Released Date Jun 27, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RN52-I/RM116 Details

Manufacturer Part Number:
RN52-I/RM116
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
MODULE-50
Pin Count:
35
Manufacturer Package Code:
MODULE-35
Country Of Origin:
Thailand
ECCN Code:
5A992.C
HTS Code:
8529.90.22.00
Factory Lead Time:
12 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
0
JESD-30 Code:
R-XXMA-N50
Length:
26 mm
Number of Terminals:
50
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
2.8 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Width:
13.5 mm
uPs/uCs/Peripheral ICs Type:
RFSOC

RN52-I/RM116 Frequently Asked Questions (FAQs)

A quarter-wavelength monopole antenna or a PCB antenna with a 50-ohm impedance matching network is recommended for optimal Bluetooth performance.
The module can be configured using the Microchip ASCII command set. The module can be set to command mode by sending '$$$' and then sending configuration commands. Refer to the Microchip documentation for the complete command set.
The maximum range of the RN52-I/RM116 module is approximately 30 meters (100 feet) in open air, but this can vary depending on the environment and obstacles.
Yes, the RN52-I/RM116 module is a standalone Bluetooth module that can be used with any microcontroller that has a UART interface.
The RN52-I/RM116 module supports audio streaming using the SBC codec. The module can be configured to stream audio using the Microchip ASCII command set. Refer to the Microchip documentation for the complete command set.

Trust Checks

Expert Contribution

System Verified

Community Approved

RN52-I/RM116 Overview

Use the download button to access the RN52-I/RM116 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RN52-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
