RN52SRC-I/RM100 footprint, schematic symbol and 3D model by Microchip

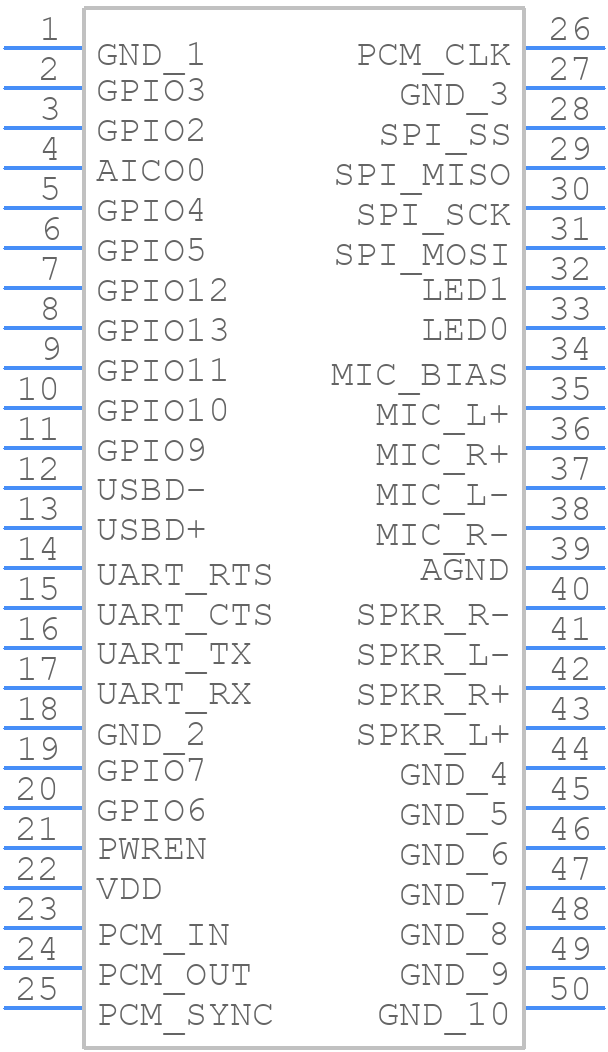

Symbol

click to zoom

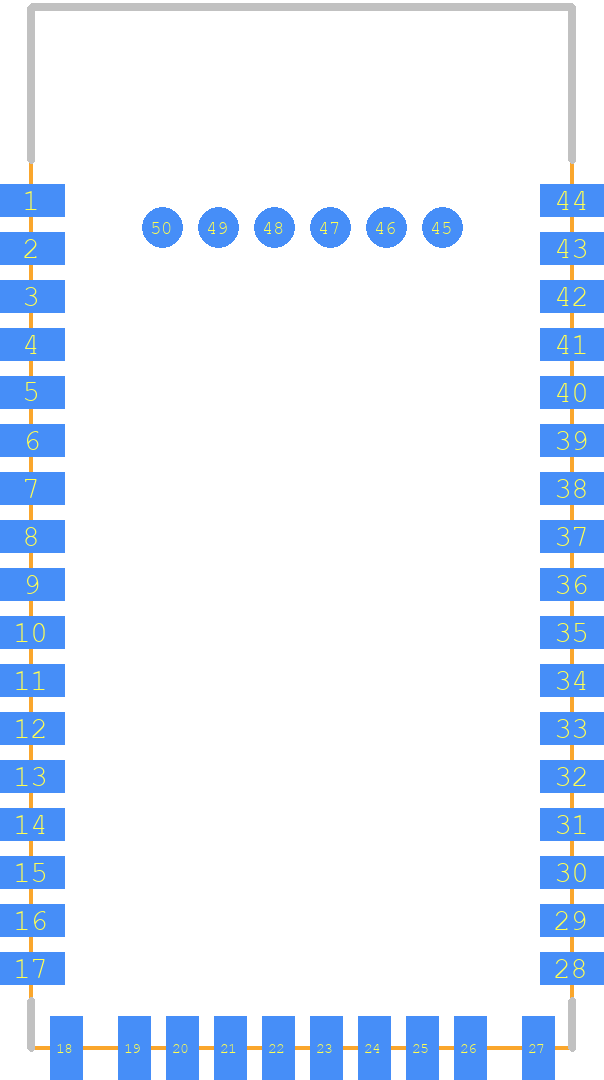

PCB Footprints

RN52SRC-I/RM100 - Microchip PCB footprint - Other - Other - RN52-DS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN52SRC-I/RM100
Part Number RN52SRC-I/RM100
Manufacturer Microchip
Pin Count 50
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RN52-DS
Released Date Sep 14, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RN52SRC-I/RM100 Details

Manufacturer Part Number:
RN52SRC-I/RM100
Pbfree Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
MODULE-50
ECCN Code:
5A992.C
HTS Code:
8529.90.22.00
Manufacturer:
Microchip Technology Inc
YTEOL:
0
JESD-30 Code:
R-XXMA-N50
Length:
26 mm
Number of Terminals:
50
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
2.8 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Width:
13.5 mm
uPs/uCs/Peripheral ICs Type:
RFSOC

RN52SRC-I/RM100 Frequently Asked Questions (FAQs)

A quarter-wavelength monopole antenna or a PCB antenna with a 50-ohm impedance matching network is recommended for optimal Bluetooth performance.
To configure the module for stereo audio streaming, set the SBC codec, enable stereo mode, and configure the audio interface to I2S or PCM. Refer to the RN52SRC-I/RM100 application note for detailed configuration settings.
The maximum range of the RN52SRC-I/RM100 module is approximately 30 meters (100 feet) in open air, but this can vary depending on the environment, antenna design, and other factors.
Yes, the RN52SRC-I/RM100 module can be used with any microcontroller that supports UART or SPI communication. However, Microchip provides example code and libraries for their PIC microcontrollers, so additional development may be required for non-Microchip microcontrollers.
To implement audio playback control, use the AVRCP (Audio/Video Remote Control Profile) protocol to send playback control commands to the module. The module will then send the commands to the connected Bluetooth device.

Trust Checks

Expert Contribution

System Verified

Community Approved

RN52SRC-I/RM100 Overview

Use the download button to access the RN52SRC-I/RM100 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RN52S, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
