ROS-2700-1819+ - Mini-Circuits

Description: Voltage Controlled Oscillator Wide Band 1300 to 2700 MHz -55°C to 85°C CASE STYLE: CK605

Download ROS-2700-1819+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

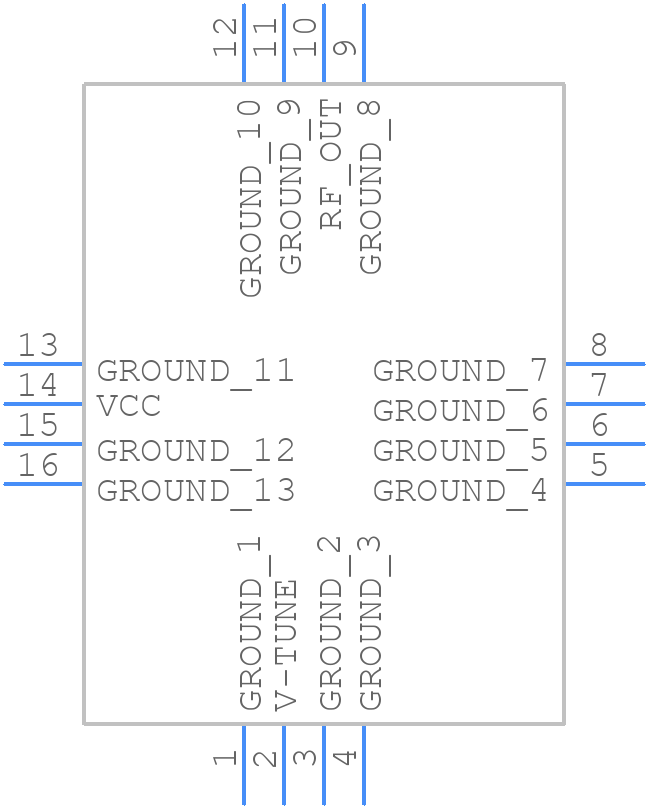

ROS-2700-1819+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

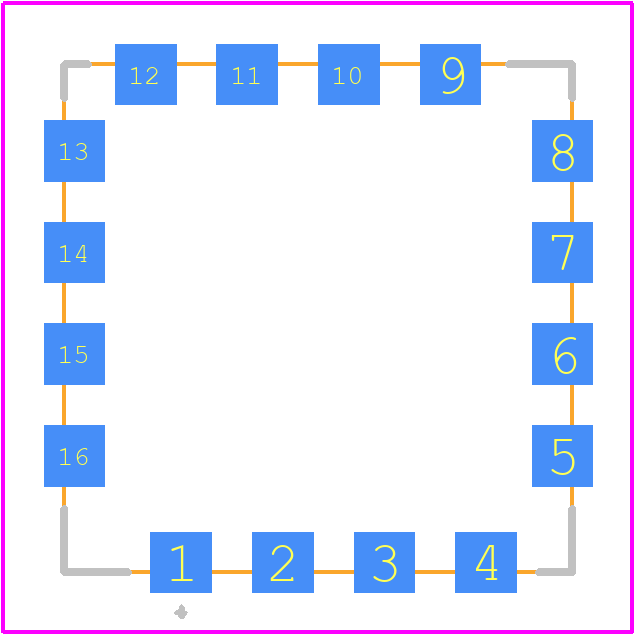

ROS-2700-1819+ - Mini-Circuits PCB footprint - Other - Other - CK605_12.7X12.7
click to zoom
3D Models
ROS-2700-1819+ - Mini-Circuits - 3D model - Other - CK605_12.7X12.7
click to zoom

ROS-2700-1819+ Details

  • Manufacturer Part Number:

    ROS-2700-1819+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0.4

  • Control Voltage-Max:

    25 V

  • Control Voltage-Min:

    0.15 V

  • Modulation Sensitivity:

    92 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Offset Frequency:

    1 kHz

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    3.3 dBm

  • Phase Noise:

    -69 dBc/Hz

  • Physical Dimension:

    12.7mm x 12.7mm x 4.57mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

ROS-2700-1819+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
  • Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network topology for impedance matching. The specific component values will depend on the system's impedance and the desired frequency range. Consult the datasheet and application notes for more information.
  • While the datasheet specifies the maximum input power, it's essential to consider the device's thermal characteristics and heat dissipation capabilities. Mini-Circuits recommends derating the power handling capability based on the operating temperature and environment. Consult the datasheet and application notes for more information.
  • To minimize the noise figure, ensure that the ROS-2700-1819+ is properly impedance matched, and the input signal is optimized. Additionally, consider using a low-noise amplifier or a noise-reducing component, such as a balun, in the signal chain. Consult the datasheet and application notes for more information.
  • While the datasheet specifies the recommended operating temperature range, it's essential to consider the device's thermal characteristics and heat dissipation capabilities. Mini-Circuits recommends operating the ROS-2700-1819+ within the specified temperature range to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ROS-2700-1819+ Overview

Use the download button to access the ROS-2700-1819+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ROS-2, or try a keyword search, such as Voltage Controlled Oscillators

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
