RP08-11012SAW/SMD - RECOM Power

RP08-11012SAW/SMD Details

• Manufacturer Part Number:

  RP08-11012SAW/SMD

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

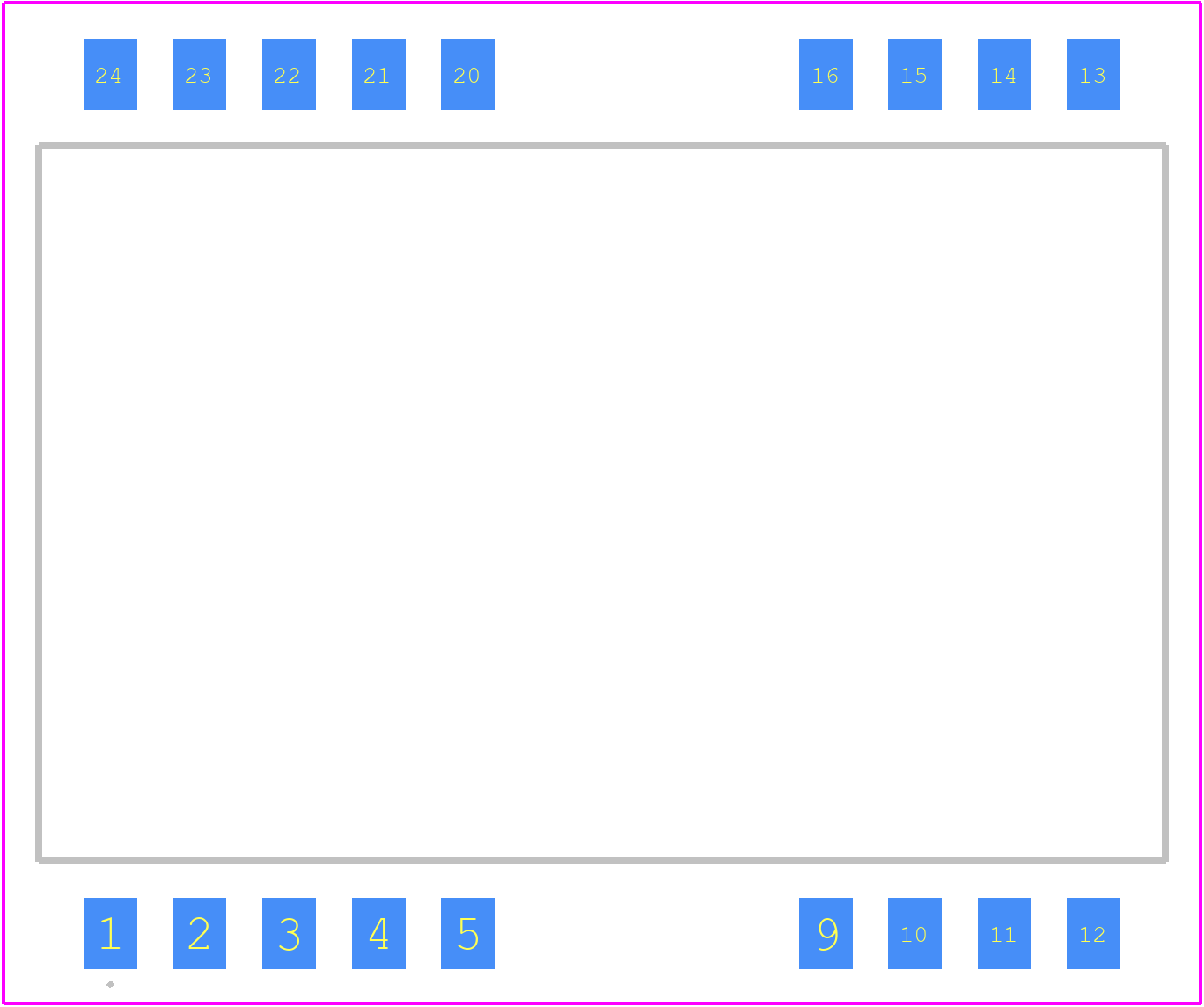

• Package Description:

  SOP, GWDIP18/24,1.0

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  160 V

• Input Voltage-Min:

  43 V

• Input Voltage-Nom:

  110 V

• JESD-30 Code:

  R-PDMA-G9

• JESD-609 Code:

  e1

• Length:

  31.4 mm

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  78 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.666 A

• Output Voltage-Max:

  12.12 V

• Output Voltage-Min:

  11.88 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  GWDIP18/24,1.0

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  255

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  5

• Total Power Output-Max:

  7.992 W

• Trim/Adjustable Output:

  NO

• Width:

  20.3 mm
