ADDITIONAL -15 VOLT OUTPUT ALSO AVAILABLE; SEATED HGT-NOM
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
85%
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P9
Length:
31.8 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.15 V
Output Voltage-Min:
14.85 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Protections:
SHORT CIRCUIT; OVER CURRENT
Qualification Status:
Not Qualified
Ripple Voltage (Main Out):
0.017675 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
8 W
Trim/Adjustable Output:
NO
Width:
20.3 mm
RP08-2415DA Frequently Asked Questions (FAQs)
RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure reliability and stability, follow the recommended operating temperature range, use a suitable thermal management system, and implement over-temperature protection and monitoring in your design.
The maximum allowable capacitance for the input and output filters is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the input capacitance below 10uF and the output capacitance below 20uF to avoid stability issues.
Yes, the RP08-2415DA can be used in a redundant or parallel configuration, but it's essential to follow RECOM Power Inc's guidelines and recommendations for synchronization, current sharing, and fault detection to ensure reliable operation.
The RP08-2415DA is designed to meet CISPR 22 Class B and EN 55022 Class B EMI standards. To ensure compliance, follow proper PCB layout and grounding techniques, use EMI filters, and consider shielding and enclosure design in your system-level design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP08-2415DA Overview

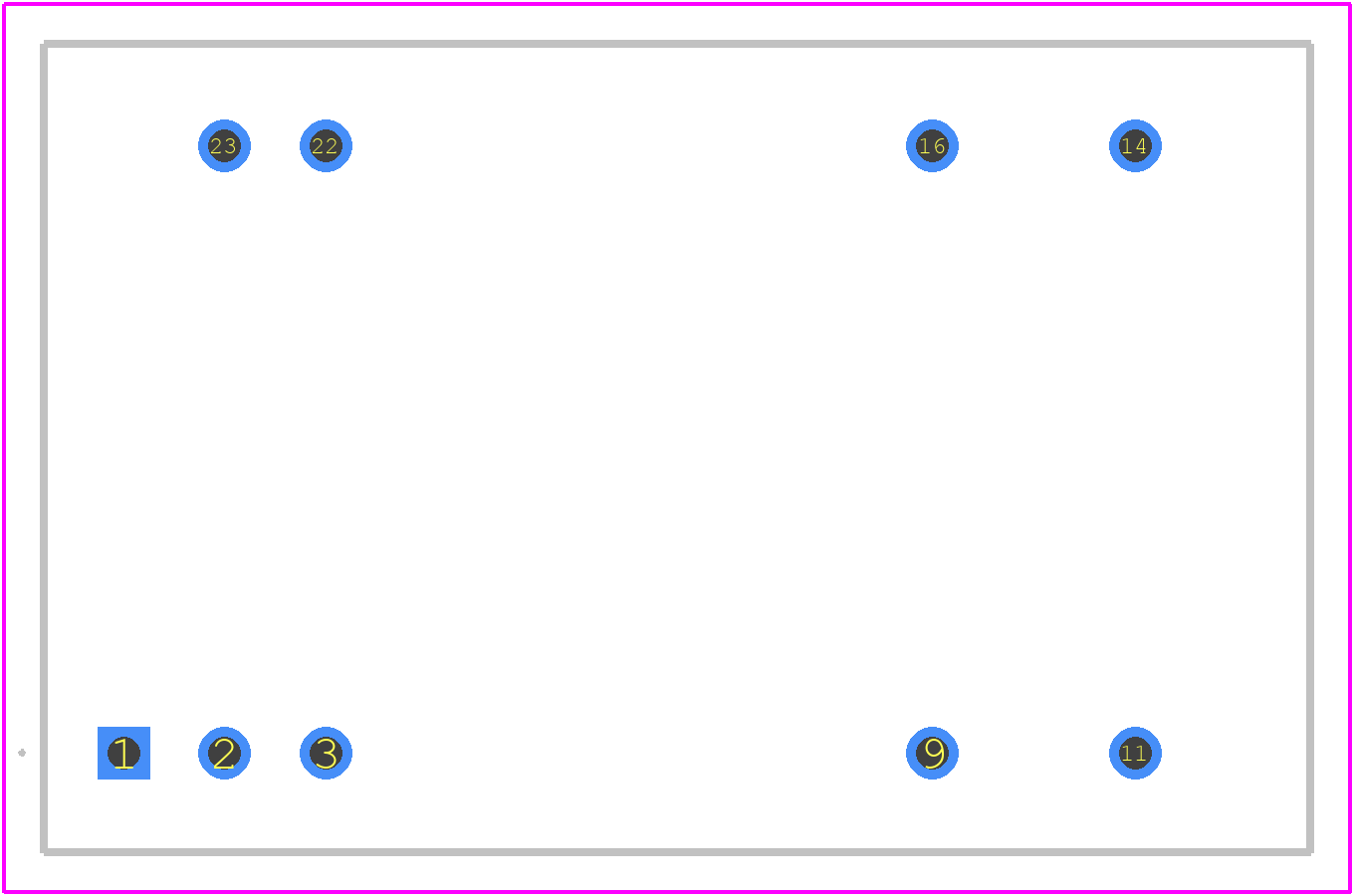

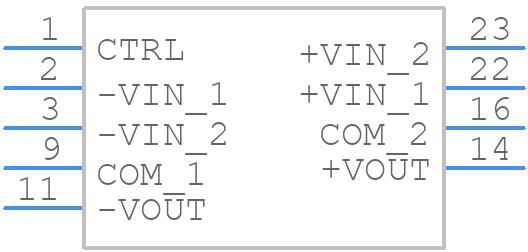

Use the download button to access the RP08-2415DA schematic symbol, PCB footprint, and 3D model.
