RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal via array under the module to improve thermal conductivity. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1W/mK should be used between the module and the heat sink.
To ensure reliability and longevity, it's essential to operate the module within the recommended temperature range (up to 85°C). Implementing a temperature derating curve, using a heat sink with a high thermal conductivity, and ensuring good airflow around the module can help reduce thermal stress. Additionally, following the recommended soldering and assembly guidelines can help prevent thermal fatigue.
The RP08-2415SAW module has built-in EMI filtering, but additional external filtering may be required depending on the system's EMI requirements. RECOM Power Inc recommends using a common-mode choke and X-capacitors to filter out high-frequency noise. The module's datasheet provides guidance on the recommended filter components and layout.
Yes, the RP08-2415SAW module can be used in redundant or parallel configurations to achieve higher power ratings or improve system reliability. RECOM Power Inc recommends using a dedicated ORing diode or a power switch with a built-in ORing function to connect the modules in parallel. The datasheet provides guidance on the recommended configuration and component selection.
The RP08-2415SAW module meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, engineers should follow the recommended installation and operating guidelines, and ensure that the module is used within its specified ratings and environmental conditions. Additionally, the system designer should consider the module's safety features, such as overvoltage protection and short-circuit protection, when designing the overall system.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP08-2415SAW Overview

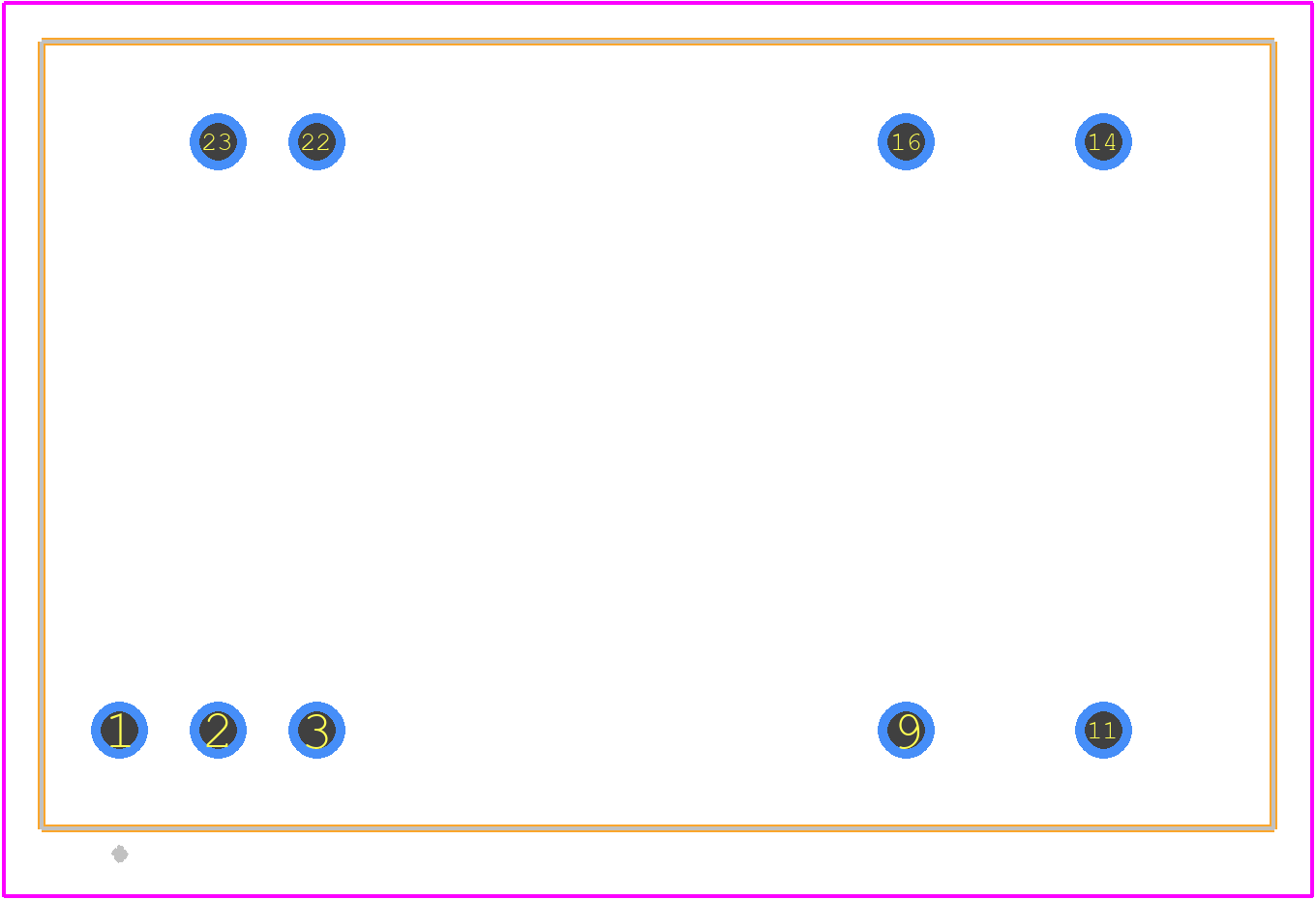

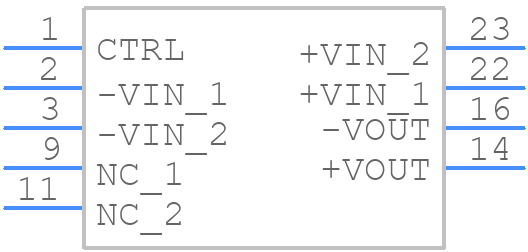

Use the download button to access the RP08-2415SAW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP08-,
or try a keyword search, such as Power Supply Modules
