RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RP10-2405SA/P is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB or chassis.
It's recommended to use a voltage regulator or a DC-DC converter to regulate the input voltage to the module. Additionally, consider using a voltage supervisor or a voltage monitor to detect any input voltage deviations and take corrective action if necessary.
The maximum output capacitance is not explicitly stated in the datasheet, but as a general rule, RECOM recommends limiting the output capacitance to 10-20 times the module's output capacitance (Cout) to avoid stability issues. For the RP10-2405SA/P, Cout is 10uF, so the maximum recommended output capacitance would be around 100-200uF.
Yes, the RP10-2405SA/P can be used in a redundant or parallel configuration to achieve higher power ratings or to provide redundancy in critical applications. However, it's essential to follow proper design and layout guidelines to ensure the modules operate within their specifications and do not interfere with each other.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP10-2405SA/P Overview

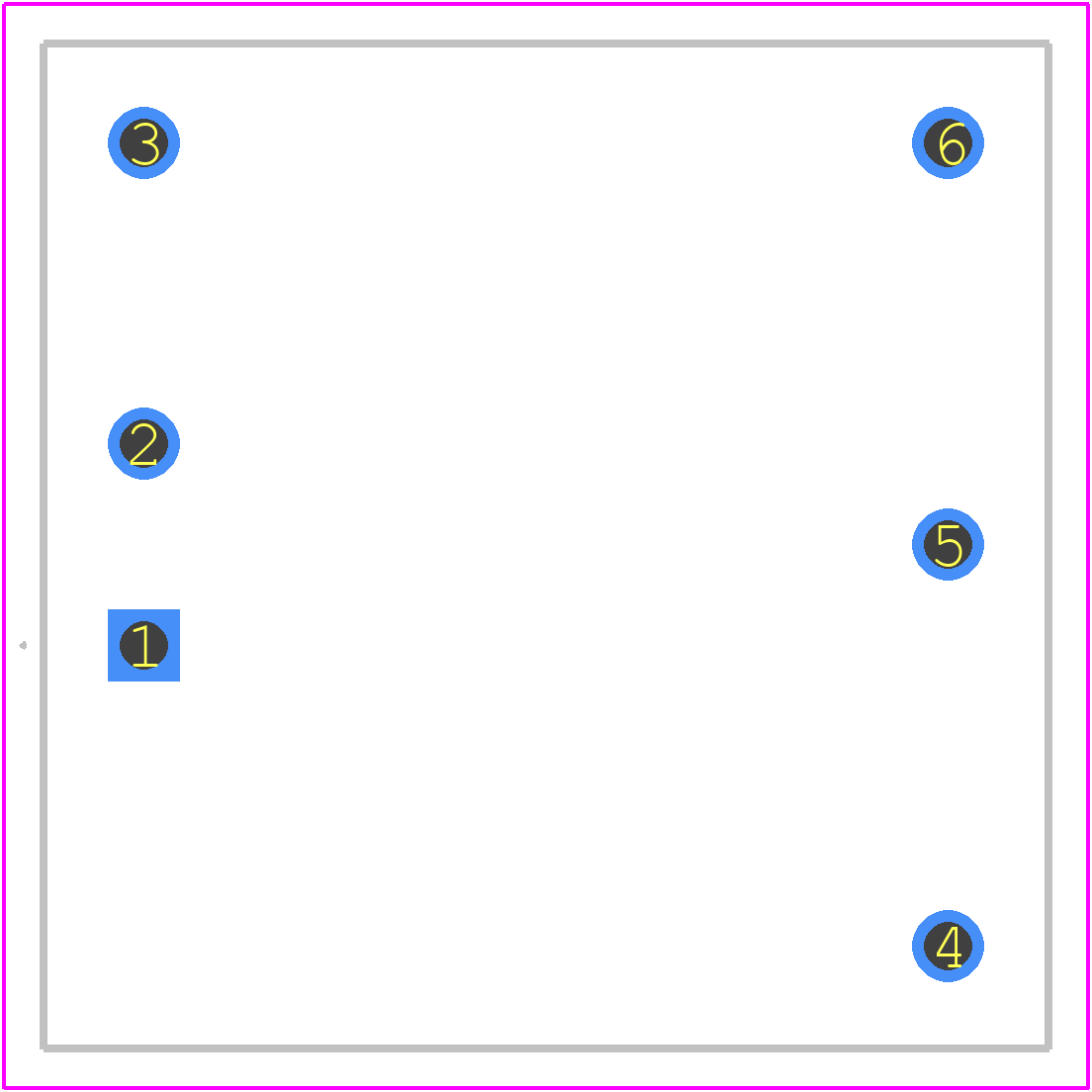

Use the download button to access the RP10-2405SA/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP10-,
or try a keyword search, such as Power Supply Modules
