A recommended PCB layout for the RP117K501D-TR includes a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 100nF) placed close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 3.3V or 5V) and decouple it with a capacitor (e.g., 100nF). The VREF pin should be connected to a stable voltage reference (e.g., 1.2V) or to the VCC pin through a resistive divider. The EN pin should be connected to a logic signal (e.g., 0V or VCC) to enable or disable the device.
The RP117K501D-TR has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
The RP117K501D-TR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
The recommended soldering profile for the RP117K501D-TR is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's also recommended to use a solder with a melting point of 217°C or higher.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP117K501D-TR Overview

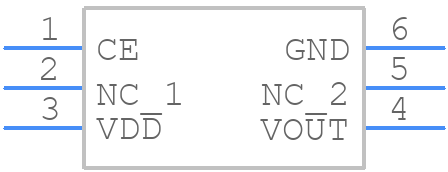

Use the download button to access the RP117K501D-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP117,
or try a keyword search, such as Linear Regulator ICs
