RP12-2412SAW - RECOM Power

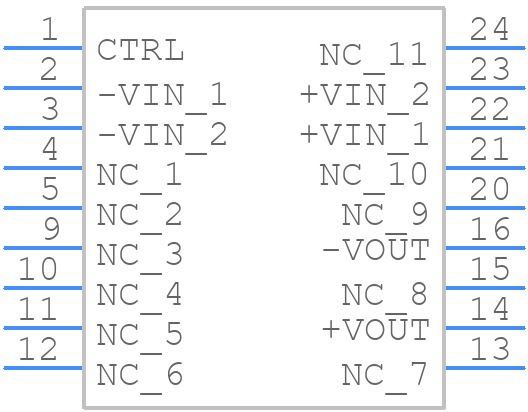

RP12-2412SAW Details

• Manufacturer Part Number:

  RP12-2412SAW

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

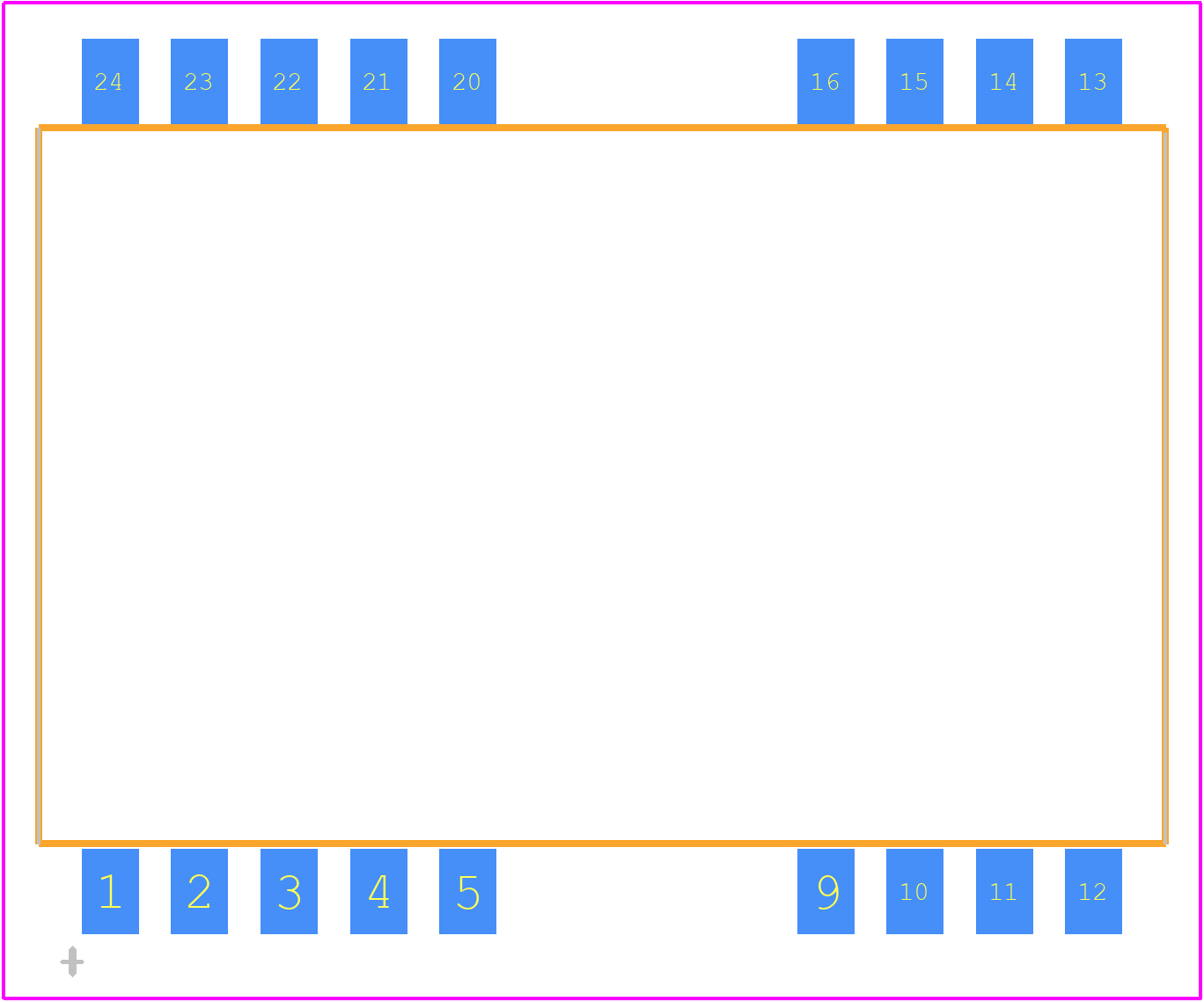

• Package Description:

  DIP-24/9

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, EN

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P9

• JESD-609 Code:

  e3

• Length:

  31.8 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  12.144 V

• Output Voltage-Min:

  11.856 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  255

• Protections:

  SHORT CIRCUIT; OUTPUT OVER VOLTAGE; OVER LOAD

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.0300475 Vrms

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  5

• Total Power Output-Max:

  12 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.45 s

• Width:

  20.3 mm
