RP15-2412SAW - RECOM Power

Description: Recom Isolated DC-DC Converter, Vin 9 → 36 V dc, Vout 12V dc, I/O isolation 1600V dc

Download RP15-2412SAW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RP15-2412SAW - RECOM Power - PCB symbol
click to zoom

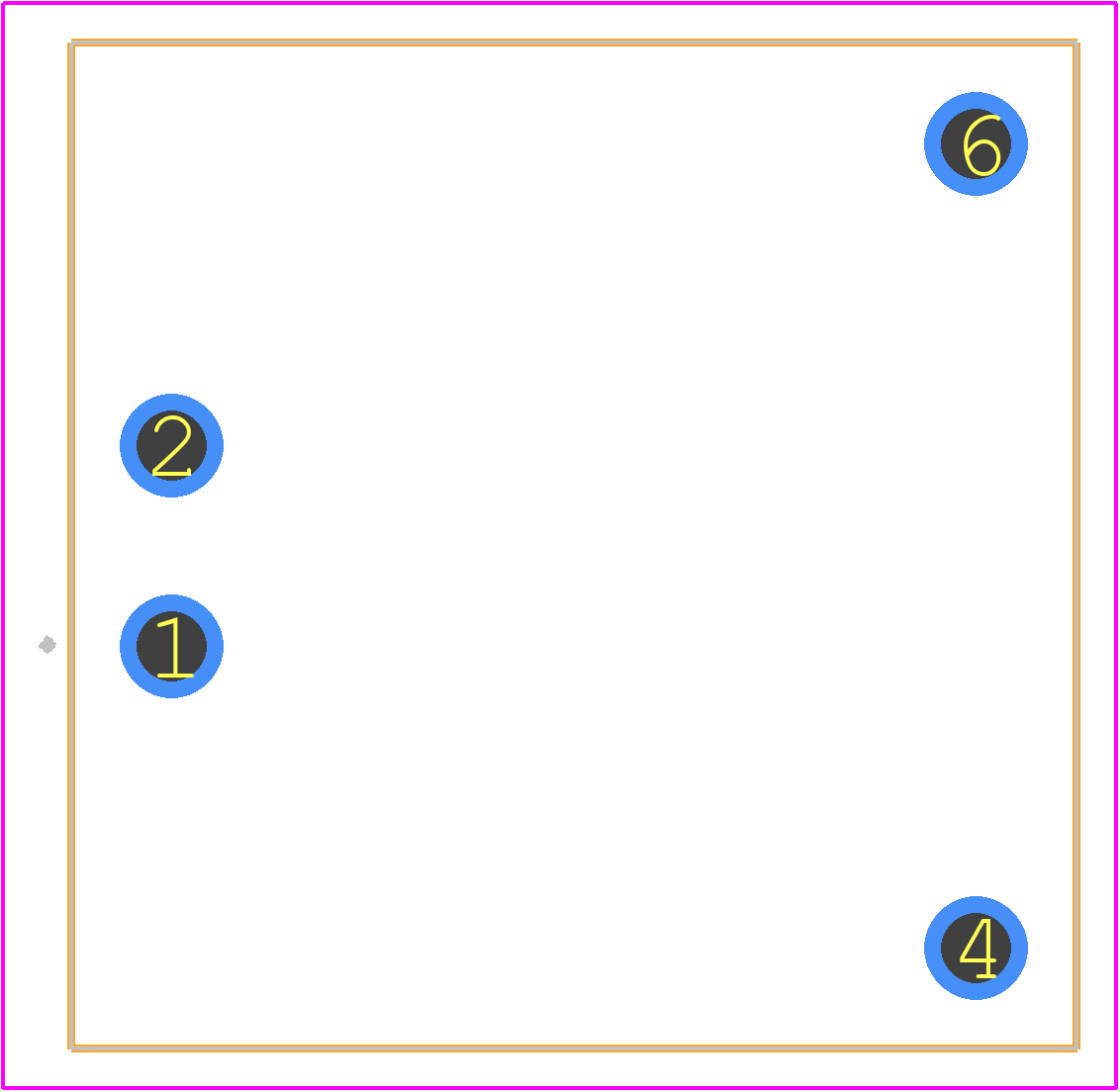

PCB Footprints
RP15-2412SAW - RECOM Power PCB footprint - Other - Other - RP15
click to zoom
3D Models
RP15-2412SAW - RECOM Power - 3D model - Other - RP15
click to zoom

RP15-2412SAW Details

  • Manufacturer Part Number:

    RP15-2412SAW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    , MODULE,6LEAD,0.8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    12.18 V

  • Output Voltage-Min:

    11.82 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,6LEAD,0.8

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    255

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Time@Peak Reflow Temperature-Max (s):

    5

  • Total Power Output-Max:

    15.6 W

RP15-2412SAW Frequently Asked Questions (FAQs)

  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling, placed as close to the Vin pin as possible.
  • Use a good quality, low-ESR output capacitor (e.g., 10uF to 22uF X7R or X5R ceramic) and keep the output cables as short as possible. Additionally, consider adding a common-mode choke or ferrite bead to the output lines.
  • The maximum allowed output capacitance is 47uF. Exceeding this value may cause instability or oscillation.
  • The converter is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-temperature applications. Consult the datasheet and RECOM's application notes for guidance.
  • Consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input to protect the converter from voltage spikes or surges.
