RP504L091D - Nisshinbo

Description: Supply Current Typ. 25 µA in VFM mode without any load Standby Current Max. 5 µA Input Voltage Range 2.3 V to 5.5 V (VOUT ≥ 1.0 V) Output Voltage Range 0.8 V to 3.3 V in 0.1 V step Output Voltage Accuracy±1.5% (VOUT ≥ 1.2 V), ±18 mV (VOUT < 1.2 V) Temperature-Drift Coefficient of Output Voltage... Typ. ±40 ppm/°C Oscillator Frequency Typ. 2.25 MHz

Download RP504L091D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

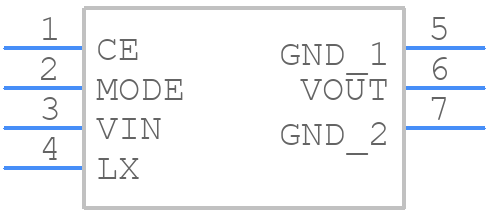

RP504L091D - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
RP504L091D - Nisshinbo PCB footprint - Other - Other - DFN1616-6B-1
click to zoom
3D Models
RP504L091D - Nisshinbo - 3D model - Other - DFN1616-6B-1
click to zoom

RP504L091D Details

  • Manufacturer Part Number:

    RP504L091D

  • Manufacturer:

    Nisshinbo Micro Devices

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP504L091D Overview

Use the download button to access the RP504L091D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP504, or try a keyword search, such as Switching Regulator or Controllers
