RP509Z002D-E2-F - Nisshinbo

Description: 0.5A/1A 6MHz PWM/VFM Step-down DCDC Converter with Synchronous Rectifier

Download RP509Z002D-E2-F Model

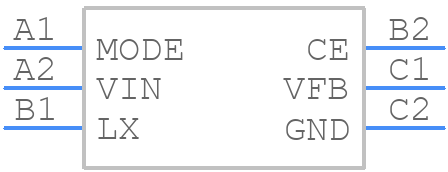

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RP509Z002D-E2-F - Nisshinbo PCB footprint - BGA - BGA - WLCSP-6-P6 Package
click to zoom
3D Models
RP509Z002D-E2-F - Nisshinbo  - 3D model - BGA - WLCSP-6-P6 Package
click to zoom

RP509Z002D-E2-F Details

  • Manufacturer Part Number:

    RP509Z002D-E2-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.28 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    7200 kHz

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.88 mm

RP509Z002D-E2-F Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the manufacturer's application note or layout guide, which provides detailed guidelines for optimal performance and thermal management.
  • To ensure thermal stability, follow the recommended PCB layout and land pattern, use a heat sink if necessary, and ensure good airflow around the device. Monitor the device's temperature and adjust the operating conditions accordingly.
  • The input and output capacitors should be selected based on the device's operating frequency, output current, and voltage ripple requirements. The datasheet provides general guidelines, but the specific requirements may vary depending on the application. Consult the manufacturer's application note or a qualified engineer for guidance.
  • To troubleshoot issues, follow a systematic approach: check the PCB layout and assembly, verify the input and output voltage and current, and ensure the device is operated within its specified parameters. Consult the datasheet, application notes, and manufacturer's support resources for guidance.
  • The RP509Z002D-E2-F is a high-reliability device designed for industrial and automotive applications. The manufacturer provides reliability data, such as MTBF (Mean Time Between Failures) and FIT (Failure In Time) rates, which can be found in the datasheet or reliability report. Consult the manufacturer for specific information.
