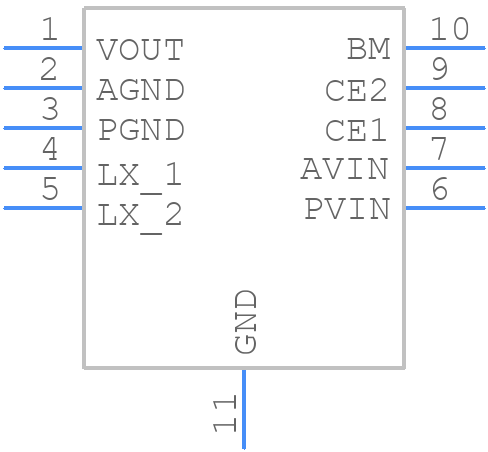

RP515K183C-TR - Ricoh

RP515K183C-TR Frequently Asked Questions (FAQs)

• What is the recommended input capacitor value and type for RP515K183C-TR?
  A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for input decoupling, placed as close as possible to the VIN pin.
• How do I ensure stability and prevent oscillation in the RP515K183C-TR?
  To ensure stability, use a 10nF to 22nF ceramic capacitor for output decoupling, and place it close to the VOUT pin. Additionally, ensure that the input and output capacitors are properly sized and placed, and that the PCB layout is optimized for low impedance and minimal noise.
• What is the maximum ambient temperature range for the RP515K183C-TR?
  The RP515K183C-TR can operate in an ambient temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
• Can I use the RP515K183C-TR in a high-reliability or automotive application?
  Yes, the RP515K183C-TR is AEC-Q100 qualified and suitable for high-reliability and automotive applications, but it's essential to follow the recommended operating conditions, PCB design, and component selection guidelines to ensure reliable operation.
• How do I calculate the power dissipation and heat sink requirements for the RP515K183C-TR?
  Power dissipation can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. A heat sink may be required depending on the operating conditions and power dissipation. Consult the datasheet and thermal resistance values to determine the necessary heat sink requirements.
