RP60-2412SG footprint, schematic symbol and 3D model by RECOM Power

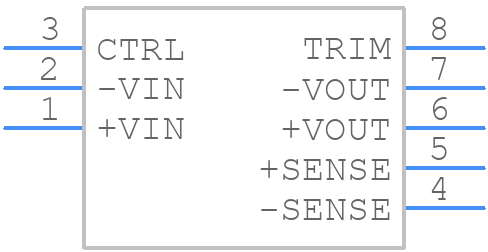

Symbol

click to zoom

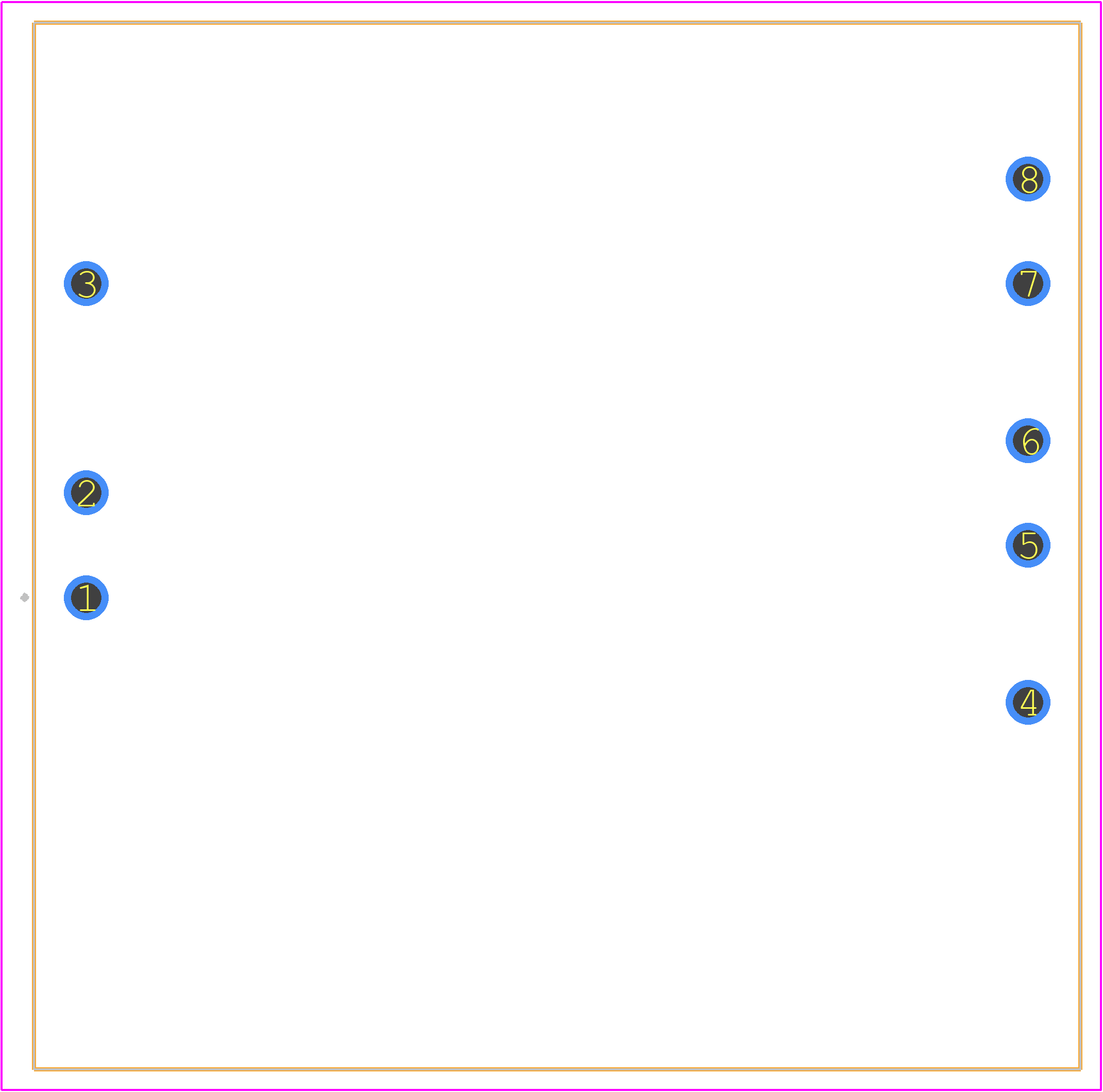

PCB Footprints

RP60-2412SG - RECOM Power PCB footprint - Other - Other - RP60-2412SG-1

click to zoom

3D Models

RP60-2412SG - RECOM Power - 3D model - Other - RP60-2412SG-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RP60-2412SG
Part Number RP60-2412SG
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - RP60-2412SG-1
Released Date Nov 1, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RP60-2412SG Details

Manufacturer Part Number:
RP60-2412SG
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
DMA, MODULE,8LEAD,1.8
Pin Count:
8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Additional Feature:
SEATED HGT-NOM
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P8
Length:
50.8 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
40 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
5 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
10.8 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,8LEAD,1.8
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Qualification Status:
Not Qualified
Seated Height-Max:
10.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
60 W
Trim/Adjustable Output:
YES
Width:
50.8 mm

RP60-2412SG Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the module on a multi-layer PCB with a large copper area for heat dissipation. The copper area should be connected to a solid ground plane to ensure good heat conduction.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder paste to the PCB pads and place the module on the PCB. Use a reflow oven or a hot air gun to solder the module. Avoid overheating the module or using excessive force, which can damage the internal components.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 50V or higher. A low-ESR ceramic capacitor, such as an X7R or X5R type, is recommended for optimal performance.
To protect the module from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to monitor the input voltage. The voltage supervisor can be set to trigger an interrupt or reset the system if the input voltage exceeds the recommended range.
The maximum allowed input voltage ripple for this module is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

RP60-2412SG Overview

Use the download button to access the RP60-2412SG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RP60-, or try a keyword search, such as Power Supply Modules
