The recommended land pattern for RP602Z330C-E2-F can be found in the Ricoh's 'Recommended Land Pattern' document, which is usually provided separately from the datasheet. It's essential to follow this pattern to ensure reliable soldering and to prevent thermal and mechanical stress on the component.
To handle thermal considerations, ensure that the PCB design provides adequate thermal relief, and the component is placed in a way that allows for good airflow. The thermal resistance (Rth) of the component is specified in the datasheet, and it's essential to keep the operating temperature within the recommended range to prevent overheating and ensure reliability.
The recommended soldering profile for RP602Z330C-E2-F can be found in the Ricoh's 'Soldering Conditions' document or in the datasheet. It's essential to follow the recommended temperature profile and soldering time to prevent damage to the component and ensure reliable solder joints.
While the RP602Z330C-E2-F is a robust component, it's essential to evaluate its suitability for high-vibration environments. Ricoh provides guidelines for vibration testing, and it's recommended to consult with their application engineers to determine the component's reliability in such environments.
To troubleshoot issues with RP602Z330C-E2-F, start by consulting the datasheet and application notes. Check for proper PCB design, soldering, and assembly. If the issue persists, contact Ricoh's technical support or consult with their application engineers for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP602Z330C-E2-F Overview

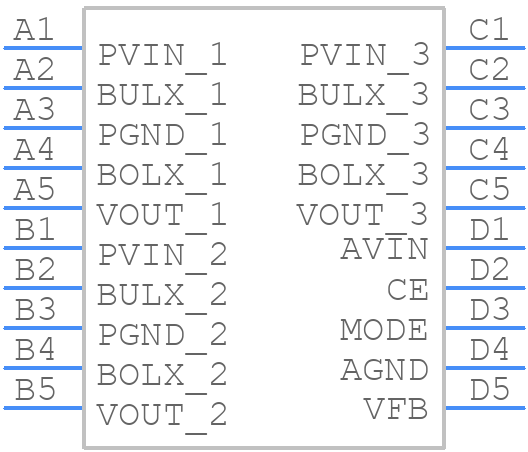

Use the download button to access the RP602Z330C-E2-F schematic symbol, PCB footprint, and 3D model.
