Part Image

RP604K361B-TR - Ricoh

Description: Switching Voltage Regulators Ultra-low Quiescent Current (IQ = 0.3 uA), 300 mA, Buck-Boost DC/DC Converter

Download RP604K361B-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

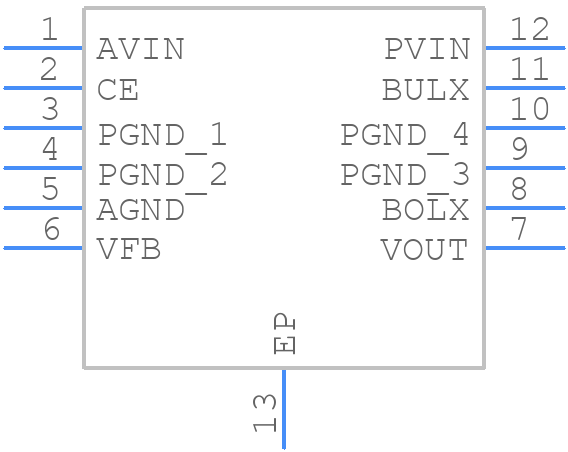

Symbol
RP604K361B-TR - Ricoh - PCB symbol
click to zoom
PCB Footprints
RP604K361B-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN(PLP)2730
click to zoom
3D Models
RP604K361B-TR - Ricoh - 3D model - Small Outline No-lead - DFN(PLP)2730
click to zoom

RP604K361B-TR Details

  • Manufacturer Part Number:

    RP604K361B-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-28

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP604K361B-TR Overview

Use the download button to access the RP604K361B-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP604, or try a keyword search, such as Switching Regulator or Controllers
