RP605Z253B-E2-F - Ricoh

Description: Non-Isolated DC/DC Converters 300mA Ultra-low Power Buck Boost DC/DC Converter with Battery Monitor

Download RP605Z253B-E2-F Model

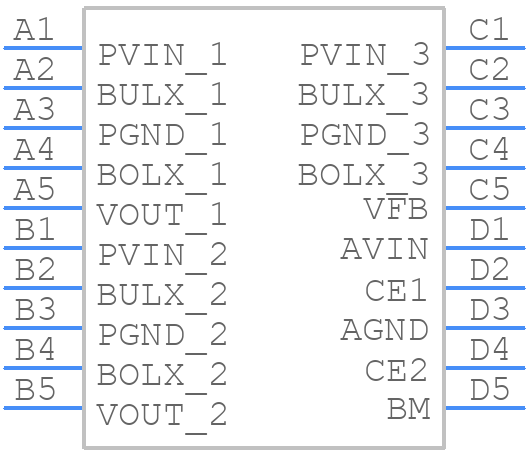

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RP605Z253B-E2-F - Ricoh PCB footprint - BGA - BGA - WLCSP-20-P3
click to zoom
3D Models
RP605Z253B-E2-F - Ricoh  - 3D model - BGA - WLCSP-20-P3
click to zoom

RP605Z253B-E2-F Details

  • Manufacturer Part Number:

    RP605Z253B-E2-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-01-24

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    VARIABLE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XBGA-B20

  • Length:

    2.315 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    2.537 V

  • Output Voltage-Min:

    2.463 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.71 mm
