RPA30-2415DAW/P footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

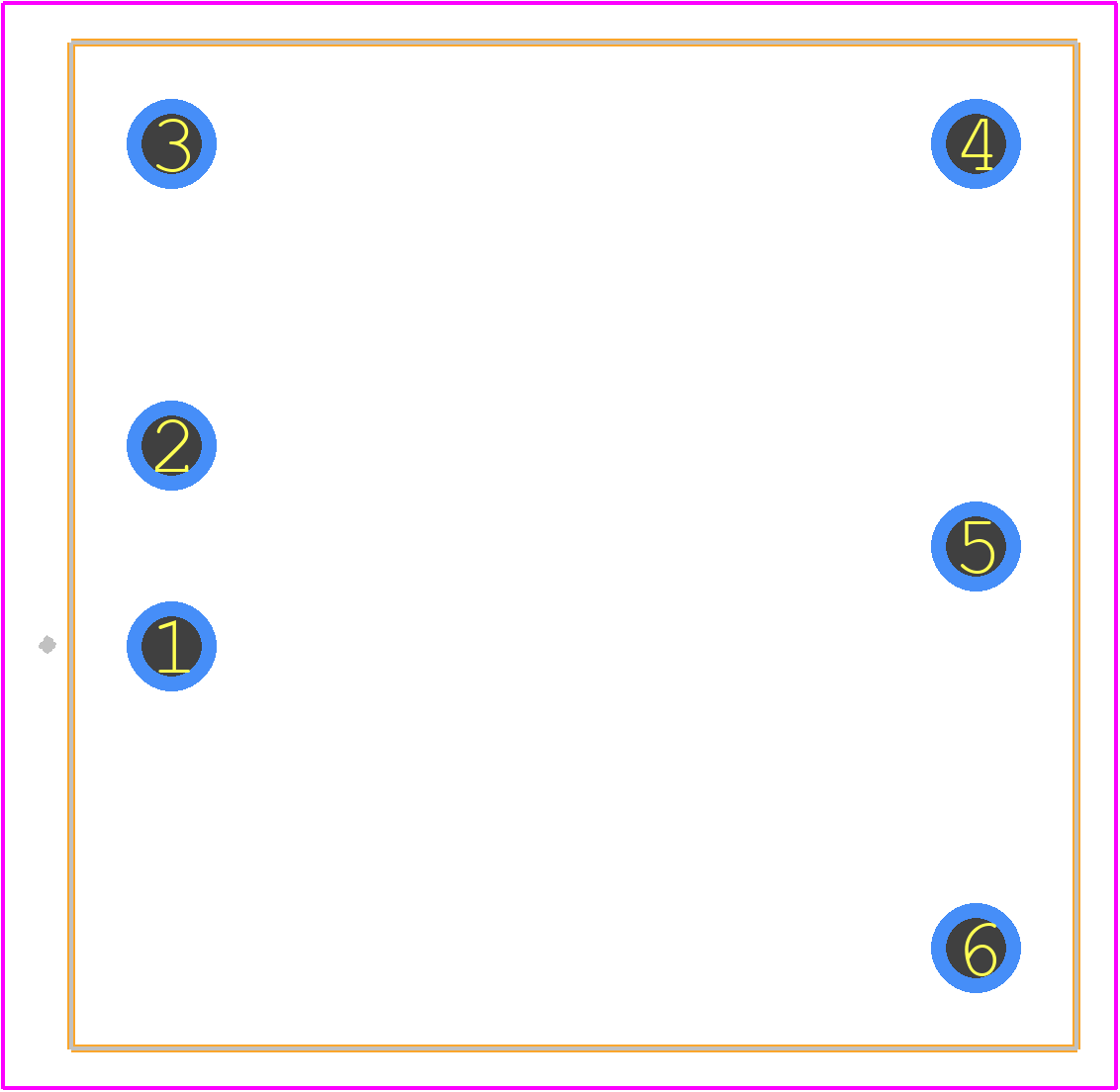

PCB Footprints

RPA30-2415DAW/P - RECOM Power PCB footprint - Other - Other - RPA30-2412SAW/P

click to zoom

3D Models

RPA30-2415DAW/P - RECOM Power - 3D model - Other - RPA30-2412SAW/P

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPA30-2415DAW/P
Part Number RPA30-2415DAW/P
Manufacturer RECOM Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - RPA30-2412SAW/P
Released Date Aug 6, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RPA30-2415DAW/P Details

Manufacturer Part Number:
RPA30-2415DAW/P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
38 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.3 V
Output Voltage-Min:
14.7 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
25.4 mm

RPA30-2415DAW/P Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The RPA30-2415DAW/P is designed to meet UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure that your application meets the required safety standards by following the guidelines in the datasheet and RECOM's safety application notes.
The maximum allowable capacitance for the input filter is 100nF, and for the output filter is 220nF. Exceeding these values may affect the stability and performance of the DC-DC converter.
Yes, the RPA30-2415DAW/P is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to follow RECOM's guidelines for vibration testing and ensure that the DC-DC converter is properly secured to the PCB and chassis.
The recommended input voltage range for optimal performance is 36V to 75V. Operating outside this range may affect the efficiency and reliability of the DC-DC converter.

Trust Checks

Expert Contribution

System Verified

Community Approved

RPA30-2415DAW/P Overview

Use the download button to access the RPA30-2415DAW/P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RPA30, or try a keyword search, such as Power Supply Modules
