RPA60-2412SFW/P footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

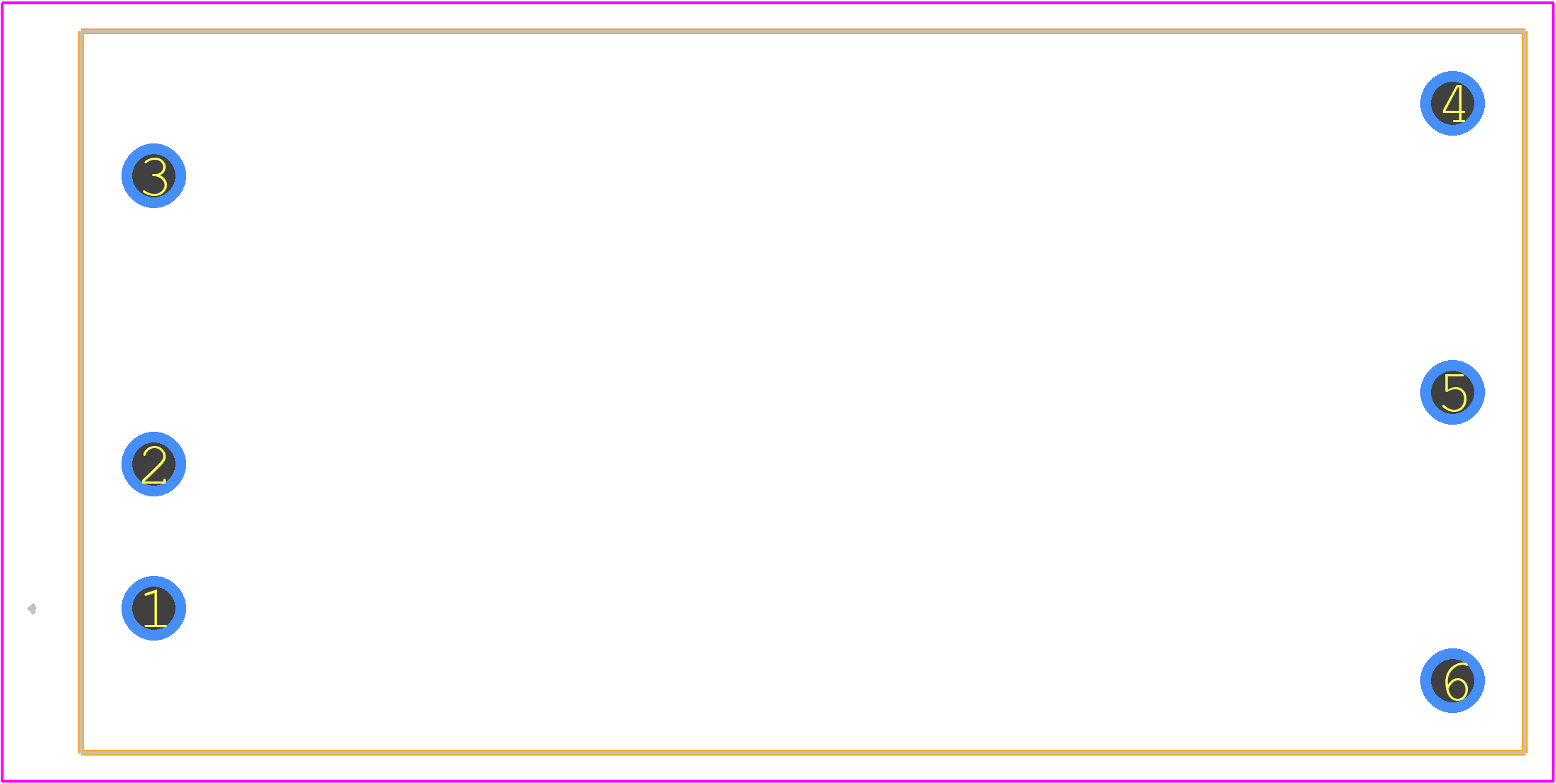

PCB Footprints

RPA60-2412SFW/P - RECOM Power PCB footprint - Other - Other - RPA60-FW

click to zoom

3D Models

RPA60-2412SFW/P - RECOM Power - 3D model - Other - RPA60-FW

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPA60-2412SFW/P
Part Number RPA60-2412SFW/P
Manufacturer RECOM Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - RPA60-FW
Released Date Jul 9, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RPA60-2412SFW/P Details

Manufacturer Part Number:
RPA60-2412SFW/P
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, CSA, EN, IEC
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
92.8%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Line Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
13.2 V
Output Voltage-Min:
10.8 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
THERMAL; OUTPUT CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
60 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

RPA60-2412SFW/P Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the module on a multi-layer PCB with a large copper area for heat dissipation. The copper area should be connected to a solid ground plane to ensure efficient heat transfer.
To ensure proper cooling, ensure good airflow around the module, and consider using a heat sink or a fan to improve airflow. The module's operating temperature range is -40°C to +85°C, and it's essential to keep it within this range to ensure reliability and longevity.
The RPA60-2412SFW/P module has built-in EMI filtering, but additional filtering may be required depending on the specific application and regulatory requirements. It's recommended to consult with a qualified engineer to determine the necessary filtering requirements.
The RPA60-2412SFW/P module is designed to withstand moderate vibration, but it's essential to ensure the module is properly secured to the PCB and the PCB is securely fastened to the chassis to prevent damage or dislodging.
The recommended input fuse rating for the RPA60-2412SFW/P module is 5A slow-blow or 3A fast-acting fuse, depending on the specific application and input voltage.

Trust Checks

Expert Contribution

System Verified

Community Approved

RPA60-2412SFW/P Overview

Use the download button to access the RPA60-2412SFW/P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RPA60, or try a keyword search, such as Power Supply Modules
