RPC1299-30 - Astrodyne TDI

Description: DC EMC/EMI Line Filter 30 A 75V 75V Two Stage PC Pins

Download RPC1299-30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RPC1299-30 - Astrodyne TDI - PCB symbol
click to zoom
PCB Footprints

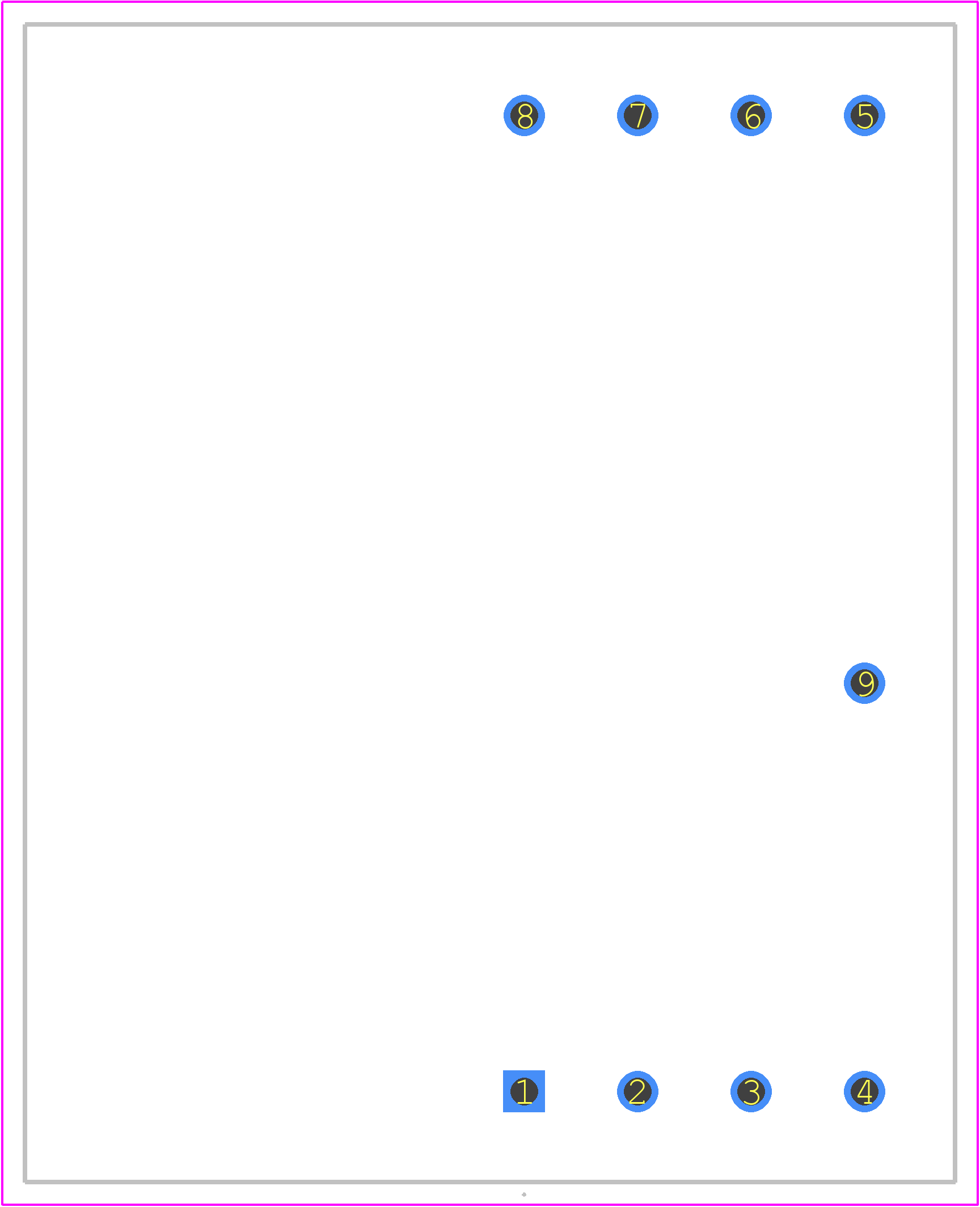

RPC1299-30 - Astrodyne TDI PCB footprint - Other - Other - RPC1299-30-5
click to zoom
3D Models
RPC1299-30 - Astrodyne TDI - 3D model - Other - RPC1299-30-5
click to zoom

RPC1299-30 Details

  • Manufacturer Part Number:

    RPC1299-30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Astrodyne TDI Power Supplies & EMI Filters

  • YTEOL:

    7

  • Approvals:

    EN

  • Filter Type:

    DATA LINE FILTER

  • Height:

    12.7 mm

  • Length:

    51 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -45 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    30 A

  • Rated Voltage:

    75 V

  • Width:

    40.6 mm

RPC1299-30 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RPC1299-30 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the RPC1299-30 is designed to operate up to 10,000 feet (3,048 meters) above sea level, but derating may be required for higher altitudes.
  • The recommended input fuse rating for the RPC1299-30 is 5A slow-blow, but this may vary depending on the specific application and environmental conditions.
  • Yes, the RPC1299-30 can be used in parallel for higher power applications, but a master-slave configuration is recommended to ensure stable operation and to prevent oscillation.
  • The typical efficiency of the RPC1299-30 is around 85%, but this may vary depending on the input voltage, output load, and operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RPC1299-30 Overview

Use the download button to access the RPC1299-30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RPC12, or try a keyword search, such as Data Line Filters
