RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink or a thermal pad to keep the junction temperature below 125°C.
The RPMB12-2.0-CT is certified to UL60950-1 and EN60950-1 safety standards. Ensure your application meets the required safety standards by following the recommended layout, component selection, and testing procedures outlined in the datasheet and relevant safety standards.
The maximum output capacitance is not explicitly stated in the datasheet. However, as a general rule, RECOM Power Inc recommends limiting the output capacitance to 10-20 times the output capacitance of the DC-DC converter (in this case, 10-20 x 22uF = 220-440uF) to avoid stability issues.
The RPMB12-2.0-CT is designed to meet the requirements of IEC 60068-2-6 for vibration. However, it's essential to ensure the DC-DC converter is properly secured to the PCB and the PCB is designed to withstand the expected vibration levels in your application.
RECOM Power Inc provides a troubleshooting guide in the datasheet, which covers common issues and their possible causes. Additionally, you can contact RECOM Power Inc's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RPMB12-2.0-CT Overview

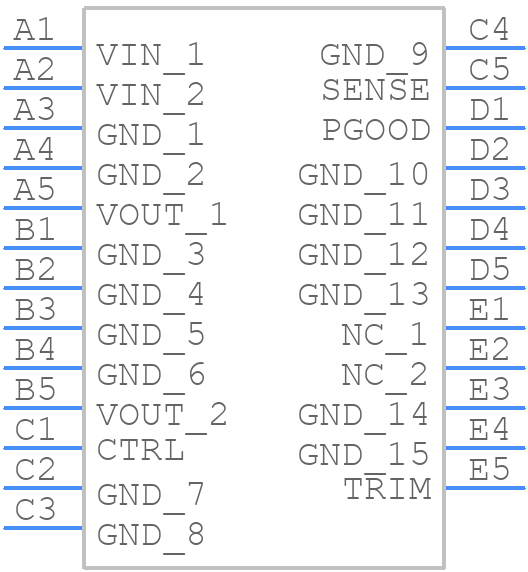

Use the download button to access the RPMB12-2.0-CT schematic symbol, PCB footprint, and 3D model.
