RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the RPMB12-3.0 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage or dislodging of the module.
To ensure reliability in high-temperature environments, it's crucial to maintain a maximum ambient temperature of 85°C and ensure good airflow around the module. Additionally, derating the output power according to the temperature derating curve in the datasheet can help prevent overheating and reduce the risk of failure.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, 50V or higher, as close to the module's input pins as possible. This helps to filter out input noise and ensure stable operation.
Yes, the RPMB12-3.0 can be used in redundant or parallel configurations to achieve higher power output or improve system reliability. However, it's essential to ensure proper synchronization and control of the modules to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RPMB12-3.0 Overview

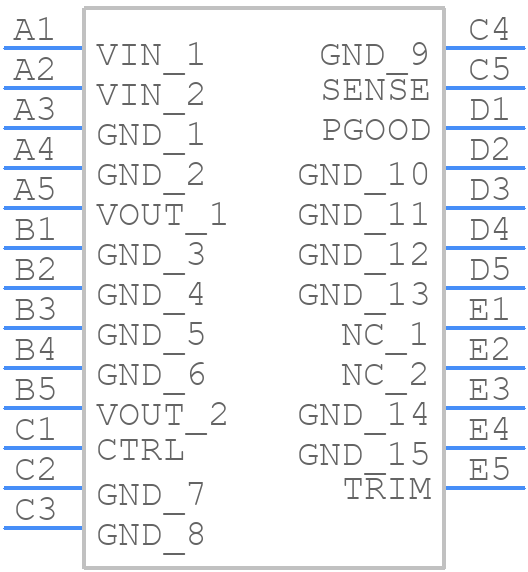

Use the download button to access the RPMB12-3.0 schematic symbol, PCB footprint, and 3D model.
