RECOM recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The RPMH24-1.5-CT is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure your application meets the required safety certifications by following the recommended layout, component selection, and testing guidelines.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22uF, rated for the input voltage range, to ensure stable operation and minimize input ripple.
Check the input voltage, output load, and PCB layout for any issues. Ensure the recommended component values and layout are followed. Use an oscilloscope to measure the output voltage and current, and consult the RECOM application notes for troubleshooting guidelines.
The RPMH24-1.5-CT is designed for industrial-grade applications. For high-reliability or high-temperature applications, consider using RECOM's high-reliability or high-temperature rated DC-DC converters, such as the RH series or the HR series.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RPMH24-1.5-CT Overview

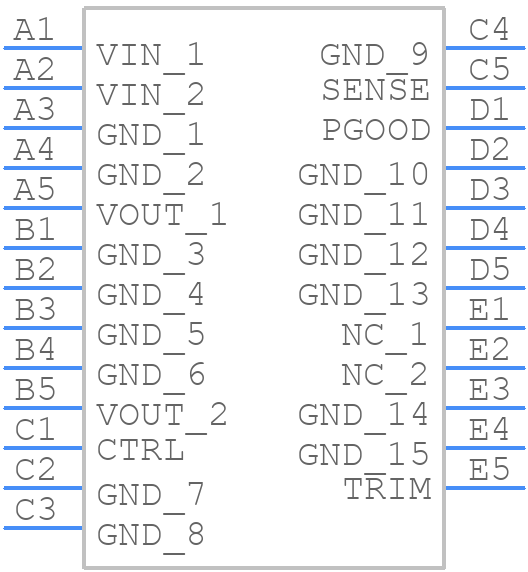

Use the download button to access the RPMH24-1.5-CT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RPMH2,
or try a keyword search, such as Power Supply Modules
