RPMVH3.3-0.5 - RECOM Power

Description: RPMVH-0.5 Series Power Module -55°C to +125°C 25 pad LGA,12.19 x 12.19 x 3.75mm,6-115 Input Voltage,3.3 Output V,500mA

Download RPMVH3.3-0.5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

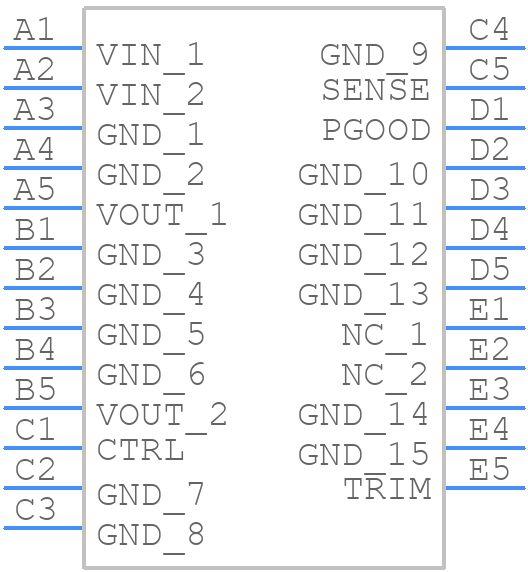

RPMVH3.3-0.5 - RECOM Power - PCB symbol
click to zoom
PCB Footprints
RPMVH3.3-0.5 - RECOM Power PCB footprint - Other - Other - 25-LGA Module_2026-1.15
click to zoom
3D Models
RPMVH3.3-0.5 - RECOM Power - 3D model - Other - 25-LGA Module_2026-1.15
click to zoom

RPMVH3.3-0.5 Details

  • Manufacturer Part Number:

    RPMVH3.3-0.5

  • Manufacturer:

    RECOM Power GmbH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RPMVH3.3-0.5 Overview

Use the download button to access the RPMVH3.3-0.5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RPMVH, or try a keyword search, such as Array/Network Resistors
