RPR-220UC30N - ROHM Semiconductor

Description: Reflective Type Photosensors (Photoreflectors) : ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.

Download RPR-220UC30N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

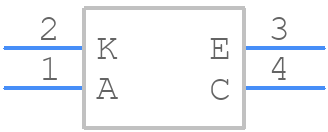

Symbol
RPR-220UC30N - ROHM Semiconductor - PCB symbol
click to zoom

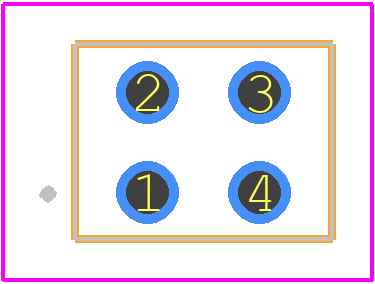

PCB Footprints
RPR-220UC30N - ROHM Semiconductor PCB footprint - Other - Other - RPR-220UC30N
click to zoom
3D Models
RPR-220UC30N - ROHM Semiconductor - 3D model - Other - RPR-220UC30N
click to zoom

RPR-220UC30N Details

  • Manufacturer Part Number:

    RPR-220UC30N

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Additional Feature:

    HIGH SENSITIVITY, 10UA VCE, 0.50UA DARK CURRENT

  • Body Breadth:

    4.9 mm

  • Body Height:

    6.5 mm

  • Body Length or Diameter:

    6.4 mm

  • JESD-609 Code:

    e1

  • Measurement Range-Max (mm):

    6 mm

  • Measurement Range-Min (mm):

    6 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Channels:

    1

  • Operating Current-Max:

    30 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Circuit Type:

    Transistor

  • Output Current-Max:

    0.8 mA

  • Output Range:

    0.08-0.80mA

  • Output Type:

    ANALOG CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    10 µs

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

  • Supply Voltage-Max:

    2.6 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER

  • VCEsat-Max:

    0.3 V

RPR-220UC30N Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to maintain a safe junction temperature.
  • The maximum allowable voltage for the input pins is 30V, but it's recommended to keep it below 25V to ensure reliable operation.
  • Yes, the RPR-220UC30N is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference.
  • Use a fuse or a current-limiting resistor in series with the input to prevent overcurrent. Add a voltage regulator or a zener diode to protect against overvoltage.
