RPS-2-30+ - Mini-Circuits

Description: 2 Ways Core & Wire Power Splitter, 10 - 3000 MHz, 50Ω

Download RPS-2-30+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

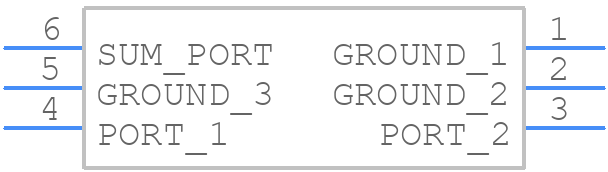

Symbol
RPS-2-30+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RPS-2-30+ - Mini-Circuits PCB footprint - Other - Other - TT1413
click to zoom
3D Models
RPS-2-30+ - Mini-Circuits - 3D model - Other - TT1413
click to zoom

RPS-2-30+ Details

  • Manufacturer Part Number:

    RPS-2-30+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE TT240, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.1

  • Additional Feature:

    ISOLATION-MIN (DB):9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Isolation-Min:

    9 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    DILCC6,.25

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Palladium/Platinum/Silver (Pd/Pt/Ag)

  • VSWR-Max:

    2

RPS-2-30+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RPS-2-30+ is -40°C to +85°C.
  • Yes, the RPS-2-30+ is designed to operate in humid environments, but it's recommended to follow proper storage and handling procedures to prevent moisture damage.
  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-impedance path to ground for the device's ground pins. A good grounding scheme is essential for optimal performance and noise reduction.
  • To optimize the RPS-2-30+ for high-frequency applications, use a low-loss PCB material, minimize trace lengths, and use a good quality bypass capacitor (e.g., 100nF) close to the device's power pins.
  • Mini-Circuits recommends using a 10uF to 22uF decoupling capacitor (e.g., X7R or X5R type) with a low ESL (Equivalent Series Inductance) and a short lead length to the device's power pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RPS-2-30+ Overview

Use the download button to access the RPS-2-30+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RPS-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
