RQ3E150BNTB - ROHM Semiconductor

Description: N-Channel 30 V 15A (Ta) 2W (Ta) Surface Mount 8-HSMT (3.2x3)

Download RQ3E150BNTB Model

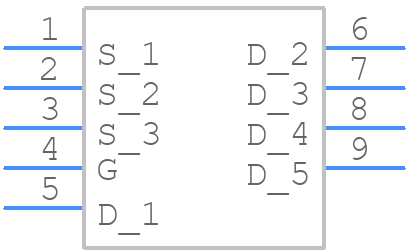

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RQ3E150BNTB - ROHM Semiconductor PCB footprint - Other - Other - RQ3E150BNTB-1
click to zoom
3D Models
RQ3E150BNTB - ROHM Semiconductor  - 3D model - Other - RQ3E150BNTB-1
click to zoom

RQ3E150BNTB Details

  • Manufacturer Part Number:

    RQ3E150BNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HSMT8, 8 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.3

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    15 A

  • Drain-source On Resistance-Max:

    0.0074 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    60 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RQ3E150BNTB Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The device requires a stable input voltage and a proper bias circuit to ensure optimal performance. A voltage regulator and a bias resistor network can be used to achieve this.
  • Handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials to prevent damage. Avoid touching the device pins or exposing it to static electricity.
  • The device is rated for operation up to 150°C, but derating is required for temperatures above 125°C. Ensure proper thermal management and consider using a heat sink if operating at high temperatures.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check the power supply, biasing, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guidance.
