RQ3L050GNTB - ROHM Semiconductor

Description: Nch 60V 13A Power MOSFET

Download RQ3L050GNTB Model

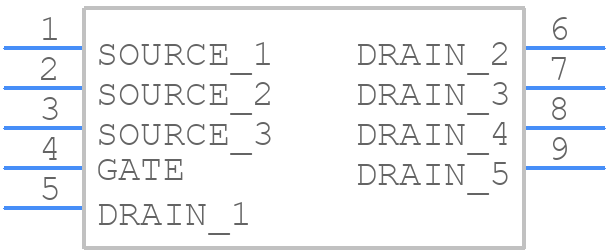

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RQ3L050GNTB - ROHM Semiconductor PCB footprint - Other - Other - HSMT8(H=0.9mm)
click to zoom
3D Models
RQ3L050GNTB - ROHM Semiconductor  - 3D model - Other - HSMT8(H=0.9mm)
click to zoom

RQ3L050GNTB Details

  • Manufacturer Part Number:

    RQ3L050GNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HSMT8, 8 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    3.9 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.086 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RQ3L050GNTB Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a thermal relief pattern is suggested to improve heat dissipation.
  • Use a high-quality output capacitor with low ESR, ensure a stable input voltage, and minimize noise on the VIN pin to ensure stable output voltage regulation.
  • The maximum allowable ripple voltage on the input is 10% of the input voltage, but it's recommended to keep it as low as possible to ensure stable operation.
  • Yes, but ensure the ceramic capacitor has a high enough capacitance value and a low enough ESR to maintain stability and regulate the output voltage.
  • Calculate the power dissipation using the formula: Pd = (VIN - VOUT) x IOUT, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current.
