RQ3L090GNTB - ROHM Semiconductor

Description: RQ3L090GNTB N-Channel MOSFET, 30 A, 60 V RQ3L090GN, 8-Pin HSMT ROHM

Download RQ3L090GNTB Model
Schematic

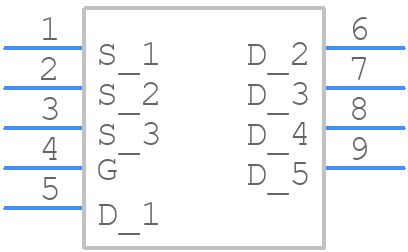

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RQ3L090GNTB - ROHM Semiconductor PCB footprint - Other - Other - HSMT8 (3.3 x 3.3)
click to zoom
3D Models
RQ3L090GNTB - ROHM Semiconductor  - 3D model - Other - HSMT8 (3.3 x 3.3)
click to zoom

RQ3L090GNTB Details

  • Manufacturer Part Number:

    RQ3L090GNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    12 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    9 A

  • Drain-source On Resistance-Max:

    0.0192 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    36 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RQ3L090GNTB Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a thermal relief pattern is suggested to improve heat dissipation.
  • Use a capacitor with a low ESR value (e.g., X5R or X7R) for the output capacitor, and consider adding a soft-start circuit to prevent inrush current.
  • The maximum allowable ripple voltage is 10% of the input voltage, but it's recommended to keep it below 5% to ensure stable operation.
  • Yes, but derate the output current according to the temperature derating curve in the datasheet, and ensure proper heat sinking and airflow.
  • Add a TVS diode or a transient voltage suppressor in parallel with the input capacitor to absorb voltage surges, and consider adding a fuse or a PTC resettable fuse for overcurrent protection.
