RQ6A045APTCR - ROHM Semiconductor

Description: Pch -12V -4.5A Small Signal MOSFET

Download RQ6A045APTCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

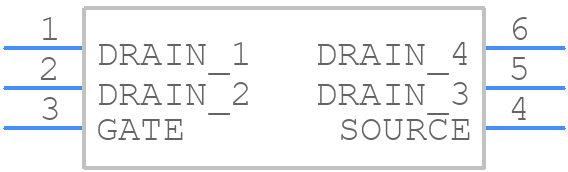

Symbol
RQ6A045APTCR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
RQ6A045APTCR - ROHM Semiconductor PCB footprint - Other - Other - TSMT6[H=1mm]
click to zoom
3D Models
RQ6A045APTCR - ROHM Semiconductor - 3D model - Other - TSMT6[H=1mm]
click to zoom

RQ6A045APTCR Details

  • Manufacturer Part Number:

    RQ6A045APTCR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-95, SOT-457T, 6 PIN

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-10-18

  • Manufacturer:

    ROHM Semiconductor

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    12 V

  • Drain Current-Max (ID):

    4.5 A

  • Drain-source On Resistance-Max:

    0.03 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    330 pF

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    18 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RQ6A045APTCR Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of 2.5mm x 2.5mm with a minimum of 10 thermal vias (0.3mm diameter) to ensure efficient heat dissipation. Additionally, a solid copper plane on the bottom layer can help to further reduce thermal resistance.
  • To ensure stable operation with a high-impedance input source, ROHM recommends adding a 1kΩ to 10kΩ resistor in series with the input pin to reduce oscillation and noise. Additionally, a 10nF to 100nF capacitor can be added in parallel with the input pin to filter out high-frequency noise.
  • The maximum allowed voltage on the enable pin is 6V, which is the same as the maximum supply voltage (VCC). Applying a voltage higher than 6V may damage the device.
  • The power dissipation of the RQ6A045APTCR can be calculated using the formula: Pd = (Vin - Vout) x Iout + Vin x Iq, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. ROHM provides a power dissipation calculator on their website to simplify this calculation.
  • ROHM recommends using a 10uF to 22uF ceramic capacitor (X5R or X7R type) with a voltage rating of 10V or higher as the input capacitor. This helps to filter out input noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RQ6A045APTCR Overview

Use the download button to access the RQ6A045APTCR schematic symbol, PCB footprint, and 3D model.
