Renesas provides a reference design guide for the RRH46410-A3R, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and reliability.
The RRH46410-A3R has built-in overcurrent protection and fault detection features. However, additional external circuitry may be required to implement a comprehensive protection scheme. Renesas provides application notes and design guides that outline recommended implementation methods.
The choice of input and output capacitors depends on the specific application and operating conditions. Renesas recommends using low-ESR capacitors with a high ripple current rating. A minimum of 10uF input capacitance and 22uF output capacitance is recommended, but the actual values may need to be adjusted based on the specific design requirements.
To ensure EMC and reduce EMI, follow Renesas' guidelines for PCB layout, component placement, and shielding. Additionally, use EMI filters, ferrite beads, and shielding components as necessary. It's also essential to perform EMC testing and certification to ensure compliance with relevant standards.
Renesas provides thermal derating guidelines for the RRH46410-A3R in the datasheet. The device's power dissipation and junction temperature must be derated based on the ambient temperature and airflow. It's essential to follow these guidelines to ensure reliable operation and prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RRH46410-A3R Overview

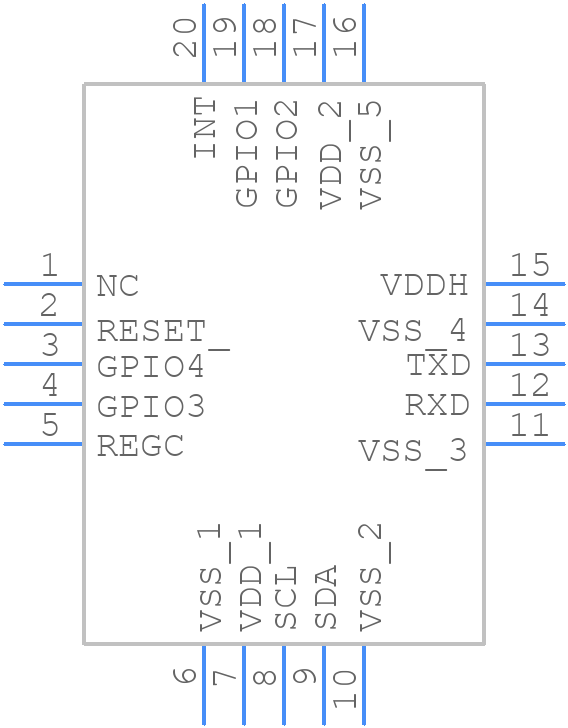

Use the download button to access the RRH46410-A3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RRH46,
or try a keyword search, such as Other Sensors/Transducers
